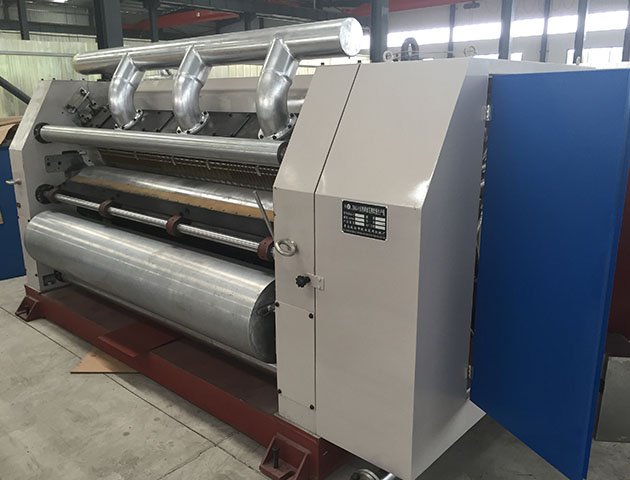

Technical details

Corrugation roller diameter: 320mm, 360mm

Corrugation roller length: 1600-2800mm

48CrMo chrome plated corrugation rollers ( Tungsten is optional)

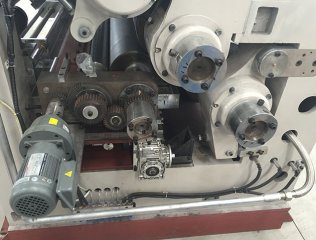

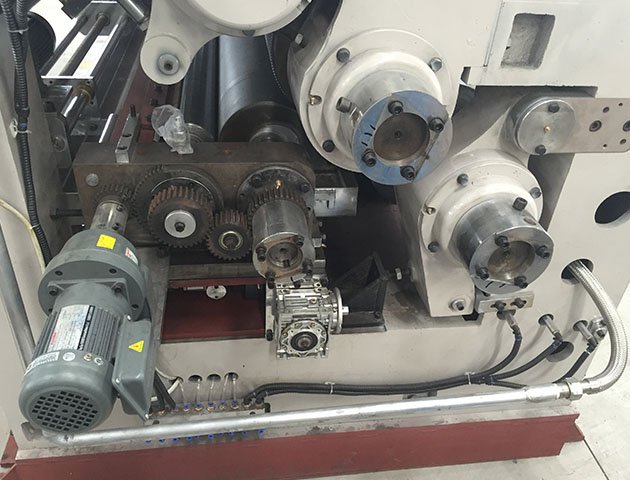

Universal-joint connection, and using sealed oil filled gear box driving unit

Electric adjust the seizing quantity, equipped with computer automatic gluing system

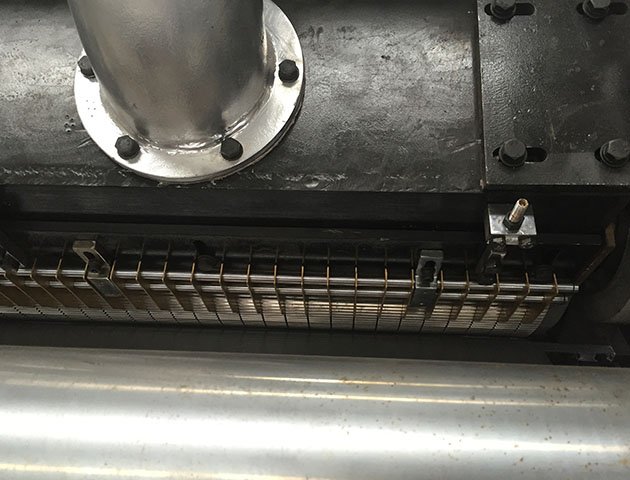

Absorption type: inner absorption or hood cover absorption

Corrugating flute type: UV/A/C/B/E are optional

Designed working speed: 120-150 meter/min

1800mm width 120 meters per minute 2 ply corrugated cardboard production working video in Australia:

2 ply corrugated cardboard making machine
