Technical details

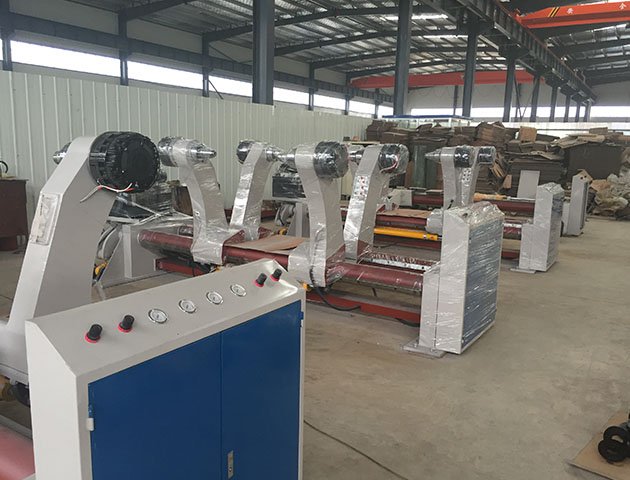

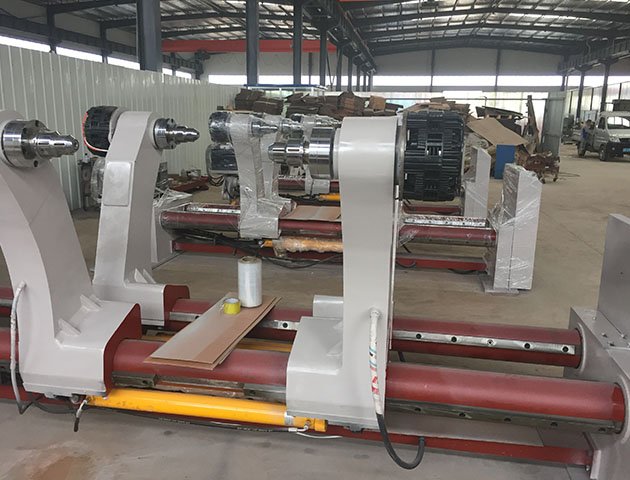

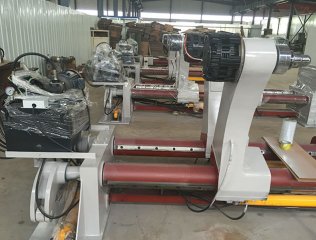

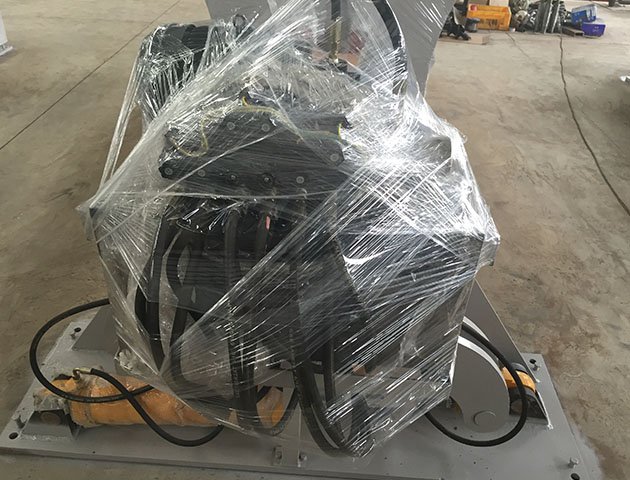

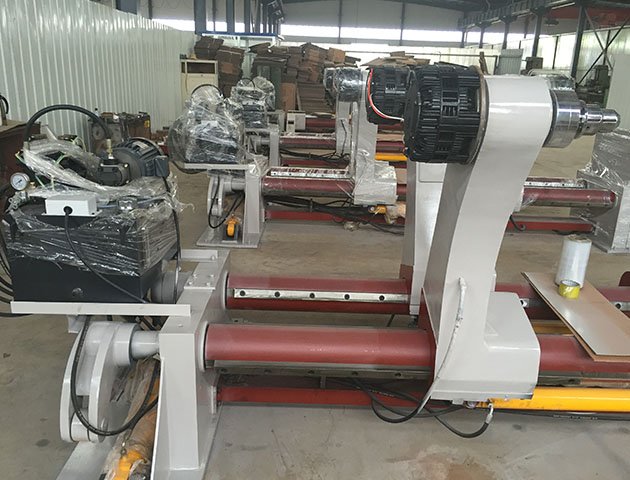

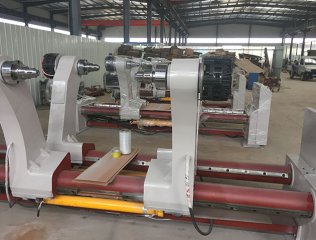

Include: big and small support stand, main shaft, paper roll clamp arm, pneumatic tension control system, hydraulic system and the electric control cabinet


1400-2800mm width is optional

Pneumatic clamping, lifting and moving

Non-stop loading and unloading of raw paper

Three point brake, clamping use inflation style clamping chuck

Max clamp mill diameter up to 1500mm, min clamp length is 850mm, single arm bear max 2000KGS
