1. PLC controlling system make the machine having an intelligent operation. Machine using three sets servo motors control keep the rewinding roll with high precision. automatic tension control system, Center and Surface Rewinding design make the rewinding roll compact and slitting surface is very smooth.
2. Machine use frequency converter adjust speed, keep stable running when speed go up.
3. Automatic count meter, automatic alarm and stop when machine had fault, automatic stop when the roll reach the setting diameter or length.

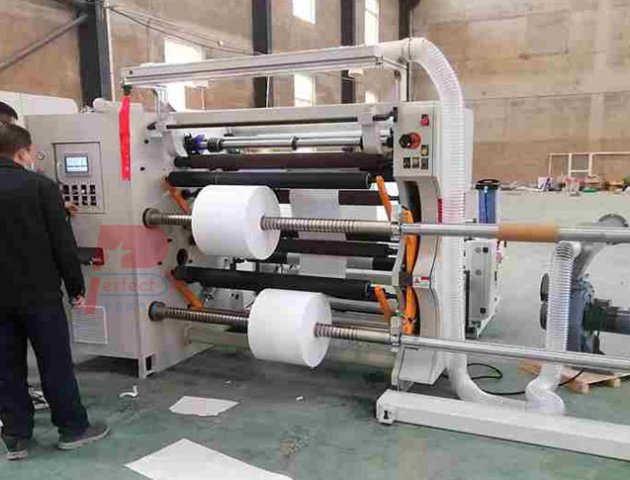

4. Rewinding shaft use two pcs differential shafts structure, with an unloading tower for easy material discharge.
5. The automatic web guide system uses ultrasonic sensors to automatically adjust the unwinding position.
6.It adopts circular knife slitting, with waste edge removed automatically by air blower.

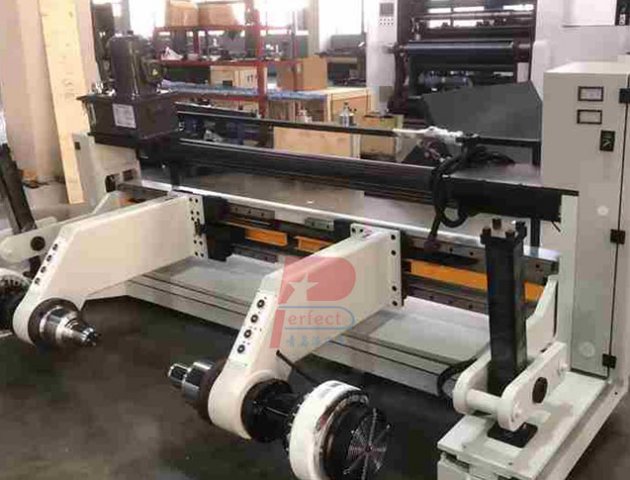

7.Unwinding adopts shaftless hydraulic loading structure, with magnetic powder taper tension control. It is fitted
with 3-6 inch self-locking mechanical expanding sleeves for material clamping and side guards.
Max mother roll width: 2000mm (other width can be customized)
Min rewinding roll width: 30mm
Max diameter mother roll: 1400mm
Max diameter winded roll: 600mm (other diameter can be customized)
Max mother roll weight: 1200kgs
Slitting speed: 0-300 meters/minute
Paper grammage range: 45-200 GSM
Rewinding way: Center winder
Precision: ±0.2mm
Speed regulation control: Frequency converter
Power input: 380V,50HZ,3PH, 27KW (Other voltage can be customized)
Dimension: About 3550*4700*2035(L*W*H)
Total weight: About 6000kgs
