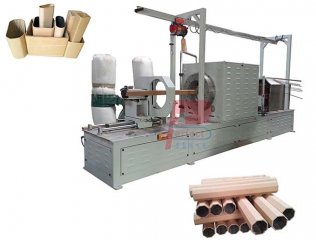

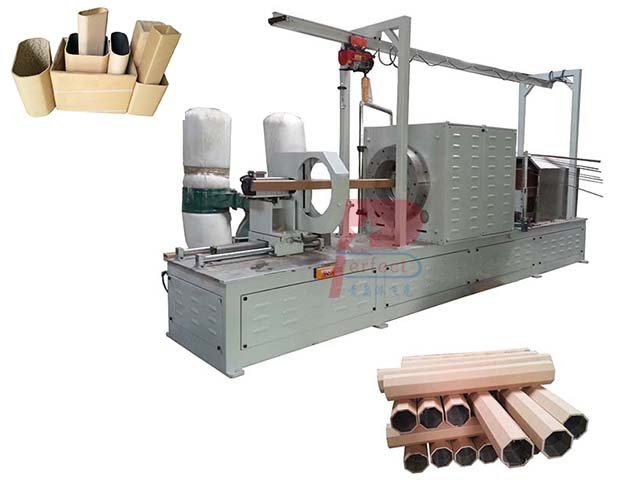

Formed paper tubes include: Octagonal, Square, and Oval
Output square paper tube inner sizes: 30-250mm( minimum edge inner diameter 30mm, maximum edge outside diameter 250mm)
Craft paper layers: 3-12 ply
Output paper tube thickness: 2-8(mm)
Minimum cutting length: 500mm
Working speed: 1-6 meters per minute
Fix length mode: CNC
Cutting method: single circular blade automatic tracking cutting
Control mode: CNC
Motor power: 380V 50Hz 3Phases 11KW+3KW+1.5KW
Number of operators: 1-3
Guide rail: Square straight line
Transmission mode: Splined shaft transmission
Total weigh: about 4500kgs
Main machine sizes: 4700*1200*2200mm (L*W*H)
Required covering area: 13000*8000mm(L*W)
