Technical details

PFK-120LU multi-usage paper angle board production line to meet the low-volume, low-input to the customer base. And can produce L, U shape paper edge board. It is one latest edge protector production line with PLC control, composite stands, pneumatic pressure adjustment and servo motor.

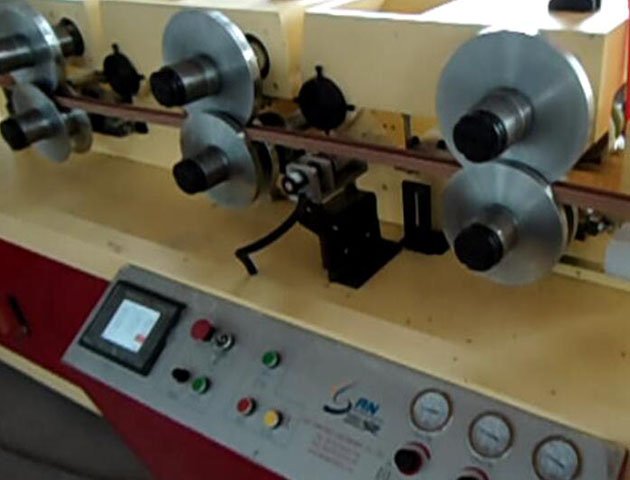

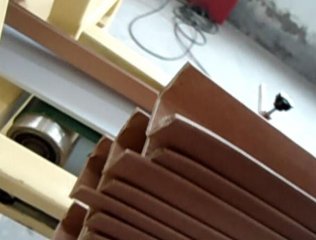

L shape paper edge corner: 25-120 mm

L shape thickness: 2.0-9.0 mm

U shape max feeding paper width: 250mm

U shape paper edge protection inner width: 20-120 mm

Max U shape height: 45 mm(customize is available)

U Shape Thickness:2-5 mm

Core paper size: 360-600 gsm sand tube paper

Facing paper size: 175-250 gsm craft paper

Paper core diameter: 76mm

Max layer: 13 layers

Working speed: 0-30 meter/minute

Control system: PLC, AC servo, Touch Screen (Panasonic)

Paper feeding: Combined frame

Gluing system: small waterfall type gluing system

Gluing type: By diaphragm automated quantitative glue

Transmission: Coaxial transmission

Pressure shaft type: Pneumatic regulator

Min cutting length: 500mm

Cutting accuracy: 1000mm+-0.5mm

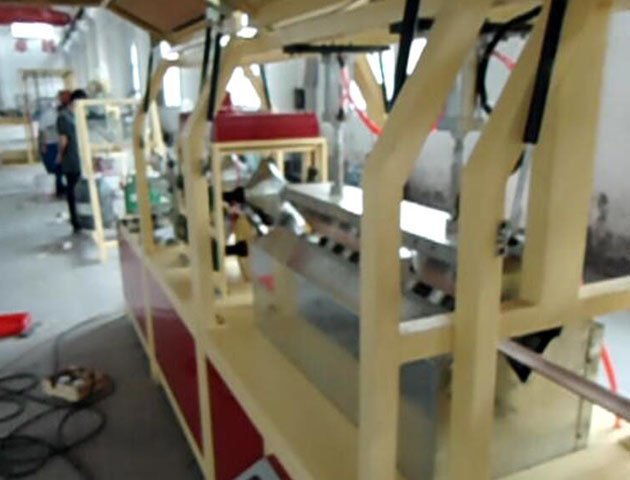

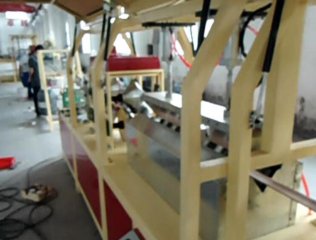

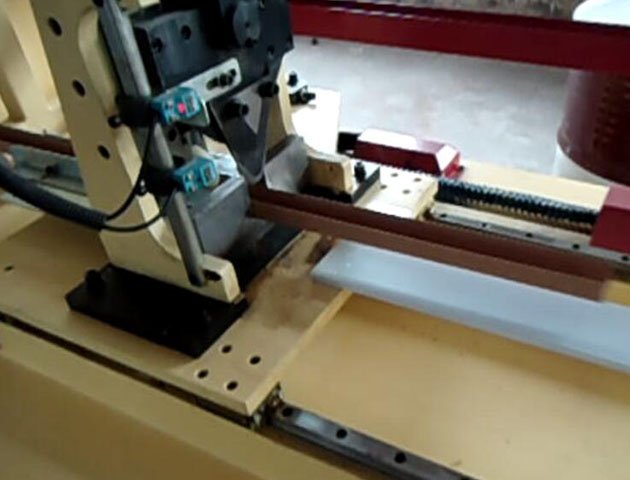

Cutting type: hydraulic cutting

Blade quantity: 2

Cutting accuracy: 0.2 mm

Angle board heating: Yes

Total power: 18.5kw/ 380V /50Hz /3 Phase

Total weight: About 4100kg

Dimension: About 22.0*1.8*1.93 meter

Compress air source: 0.8Mpa, 0.6 cube meter/hour

Operation: 2-3 people
