Technical details

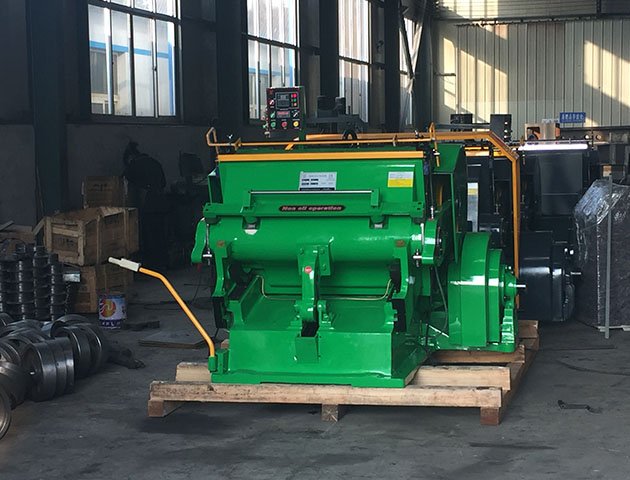

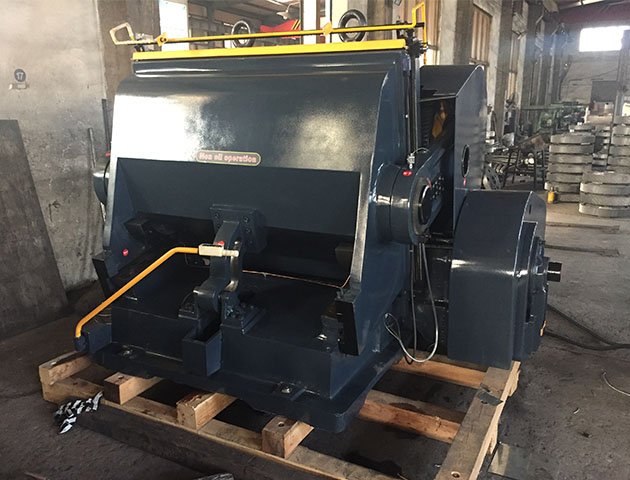

Our economic model carton box flat die cutting machine can perform side cutting, grooving, incision and punching process together with high precision, high efficiency and completely whole. This machine is widely adopted in the packaging industry, especially for colored printing areas.

Cutting dimension: 940*660mm, 1100*800mm, 1200*830mm,1300*920mm, 1400*1000mm, 1600*1250mm


Max die cutting size:1400*1000mm

Working power:380V/60Hz/ 3Phase( 220V is optional) 5.5KW


Working speed: 17-19times/min

Weight: 6400kg

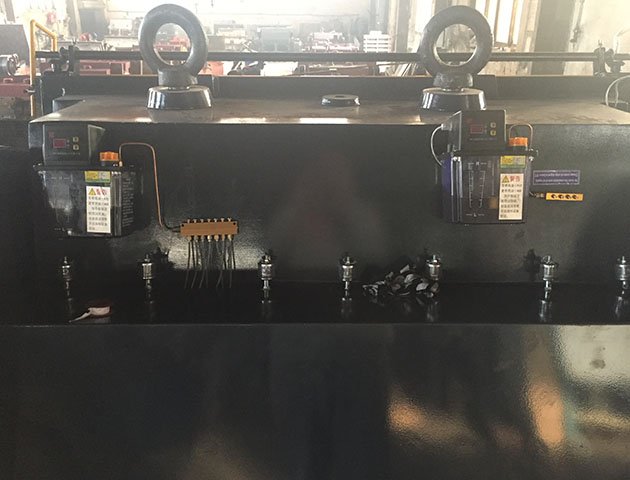

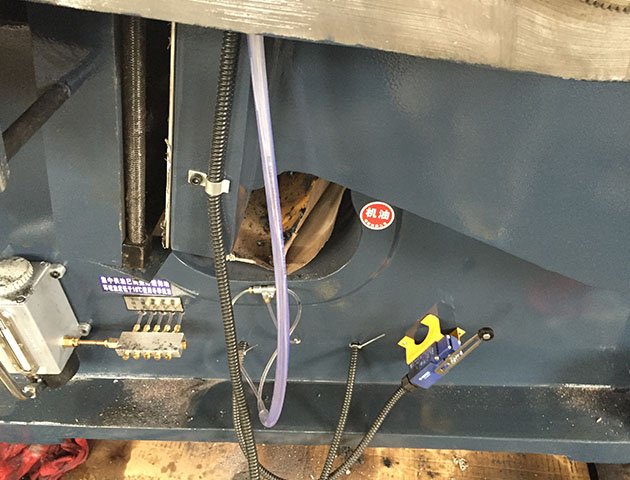

Electric absorbtion disc braker; Die cutting mould frame is adjustable; Machine body use high quality material integrated forged; Single die cutting, delay, consist,and counting function.
