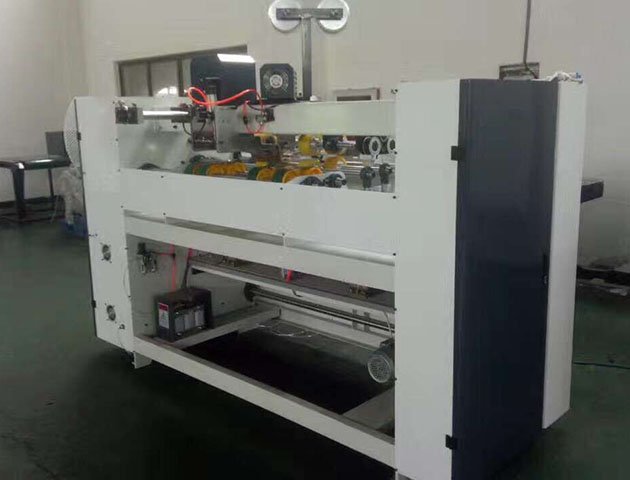

Technical details

1. Imported dual servo driven, accurately precision ,mechanical transmission are decreased, which can effectively reduce the mechanical failure rate

2. Weilun touch screen operation, the parameter change conveniently

3. The whole control system uses Omron PLC control system

4. Electric control the tail gate, the use of stepper motor-driven, size accurate, size changing is more convenient

5. Keys control box uses the Siemens

6. Photoelectric and proximity switches is Schneider brand

7. Entire nail heads group made of special steel , computer precision making

8. Can nail single nail, dual nail, strengthen nails once completed, can fit different customer requirements of different kinds of nails

9. Changing carton size and adjusting nails can be completed just one minute, saving time and easy operation

10. Can nail box with or without lid ( without lid box should be informed to maker before machine making)

11. Department of automatic counting, feed units equipped with photoelectric sensors, when feeding, table automatically rise.

12. Rear section with automatic counting function, the number of finished carton can be set(1-99) and transport to the machinery end, convenient for bundled package

13. Two function in one machine, can stitch single piece, double piece carton, not normal cartons

14. Suitable for medium and small type carton ( special for color cartons, automatic lifting) , mainly stitching 3-ply, 5-ply cartons, stitch quick and easy

15. Automatic wire feeding machine is optional


Working Power: 6 HP

Working speed: 600 stitches/min

Stitching pitch: 30-150mm

Nails Amount: 1-99 stitches

Machine weight : About 2500kg
