Technical details

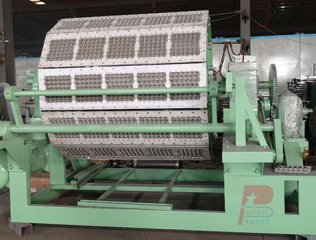

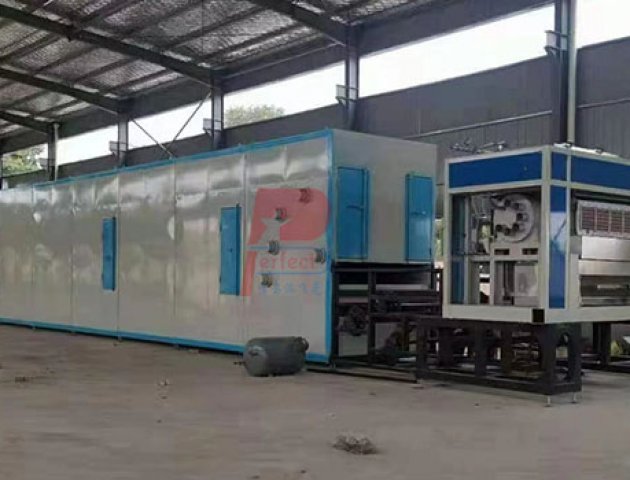

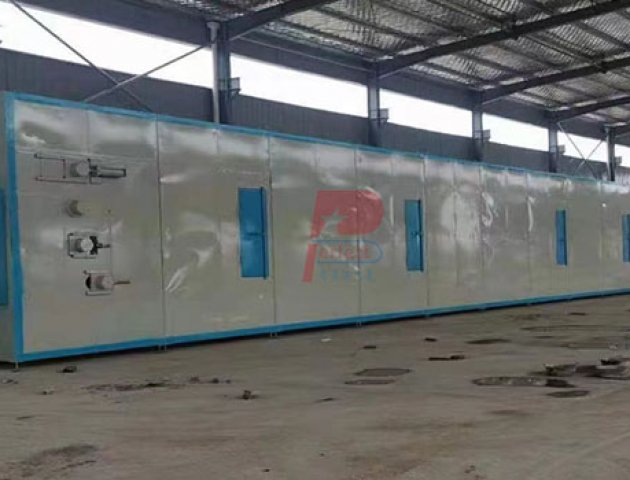

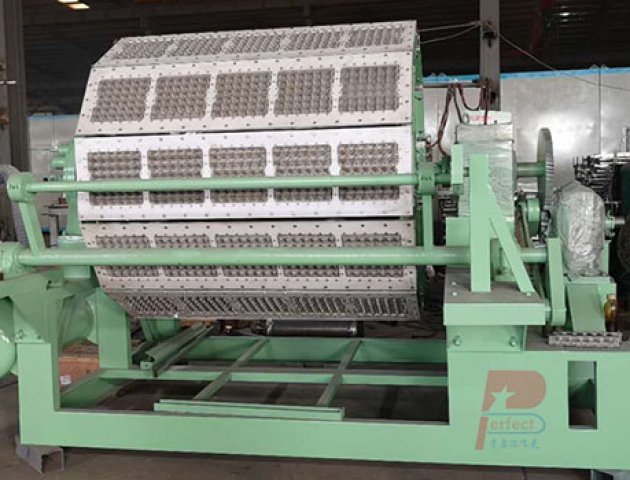

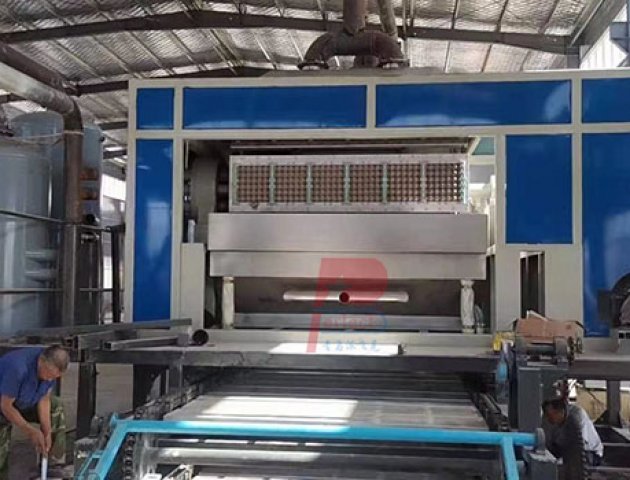

7000 pieces per hour automatic paper egg tray production machine with multi-layer metal drying machine

1.Designed capacity: 7000 pieces per hour per hour; Economic capacity: 6000-7000 pieces per hour (30 caves egg tray, 80 GSM ); the capacity vary as buyer’s workers operation skills and finished egg trays GSM

2. Required factory workshop size for the two lines: length≥45m, width≥20m; workshop for egg tray forming machine: length≥15m, width≥15m, height≥5.0m, the finished products storage warehouse must be more than 500m²


Consumption per hour

Waste paper





1300-1380kgs   (recycled)

Heavy  oil


95-100KGS   (reference)

Installation  Power



3. Production line’s electricity consumption power is about 70% of the installation power due to our energy saving design; Working electricity: 380V/50Hz/3Phase

4. Production line needed workers: 4-6 persons/shift, 2 shift per day (11 hours per shift, buyer should design the shift as their own needs)

5. This production line is configured by 30-eggs tray as standard, if it is used to produce egg carton, fruit tray, coffee tray, etc, it needs auxiliary equipment, like hot press machine, sticker, or printing machine etc. Corresponding area, total power, worker quantity must be increased.

6. The water is recycled, but because it was waste water from beginning, it became dirty when it recycled several times, it needs to be changed. For water lacked area, it can install sewage disposal system for saving water cost.

7. The main supporting equipment of this production line is international or China famous brands, reliable quality, comparing to the others products, high-efficiency, saving-energy are our new developed automatic egg tray machines features.

8. The automatic egg tray production line with metal dryer is very popular among our India Russia Philippine Malaysia Indonesia Yemen Egypt Saudi Arabia Turkey Nigeria Morocco Vietnam Romania Ukraine Mexico Venezuela clients.
