Technical details

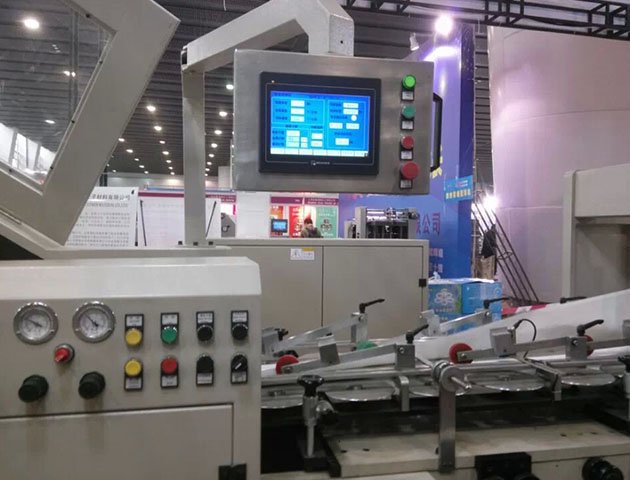

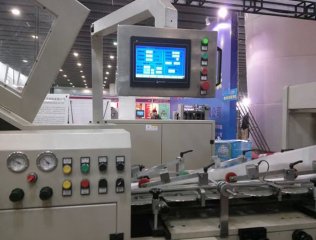

The machine breaks the primary or printed paper, the paper web is fed into the main machine for side glue application, tube forming, cut-off, bottom forming, bottom glue application, bag forming and final bag out-feed. All steps are completed once, This machine is an ideal equipment for handling square bottom paper bag. this machine is an idea equipment for handle square bottom paper bag. Whole machine is controlled by computer central control system with touch screen and servomotor for cut-of length control. It can produce variable sizes and high quality paper bag.

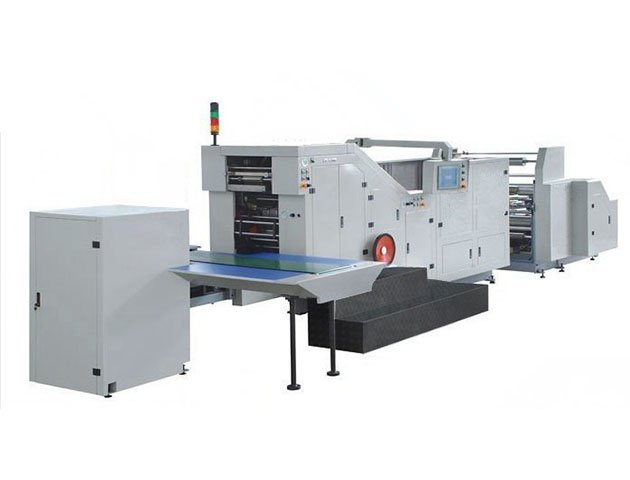

Roll Feeding Square Bottom Paper Bag Making Machine
ModelPFK-8PFK-12PFK-26
Paper Roll Width290-620mm370-890mm660-1230mm
Tube Length190-370mm270-530mm270-530mm
Bag Body Width80-190mm110-280mm260-450mm
Bag Bottom Width50-105mm60-150mm85-180mm
Paper Weight45-140g/m²50-160g/m²60-180g/m²
Max.Paper Roll Diameterφ1200mmφ1200mmφ1200mm
Material Core Diameterφ76mmφ76mmφ76mm
Max.Production Speed260bags/min220bags/min160bags/min
Total Power13.5kw18.5kw18.5kw
Weight of Machineapprox.6000kgapprox.8000kgapprox.10000kg
Overall Dimension(L*W*H)L8500*W1700*H1600mmL9000*W3300*H1900mmL9000*W3500*H1900mm
