Technical details

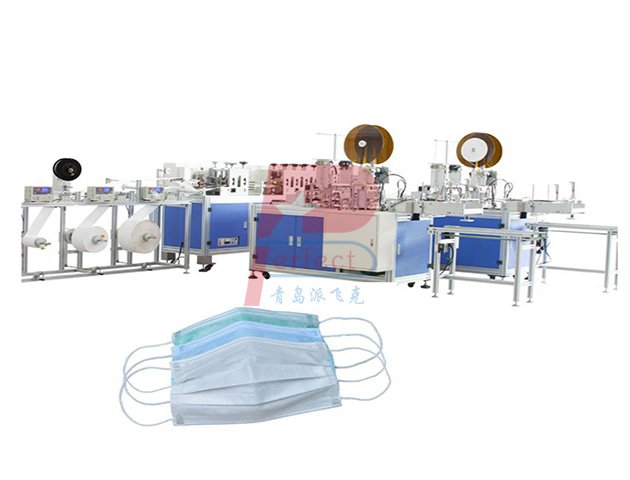

It is mainly used to produce the disposable medical flat face masks automatically: the whole roll of  non-woven fabric is driven by rollers after unwinding, and the fabric is automatically folded and hemmed; the entire length of the bridge of the nose is pulled and unrolled. Welded to the seal, then passed through the ultrasonic side seal, cut and shaped by a cutter; conveyed the mask to the two mask earband welding stations through the assembly line, and finally formed the mask by ultrasonic welding; when the mask was made, it was conveyed through the assembly line to flat belt line for collection.



Finished mask sizes: 175*95mm

Production capacity: 80-120 pieces per minute

Whole line size: about 6500mm (L) × 4500mm (W) × 1900mm (H)

Appearance color: off-white matching profile
Weight of our auto face mask production line: ≤5000kg, ground load ≤500KG / m2

Working power:  220VAC, 50HZ, rated power of about 9KW

Compressed air: 0.5 ~ 0.7 MPa, using flow rate of about 300L / min;
Operating environment: temperature 10 ~ 35 ℃, humidity 5-35% HR, no flammable and corrosive gas, no dust (cleanness no less than 100,000).
