Technical details

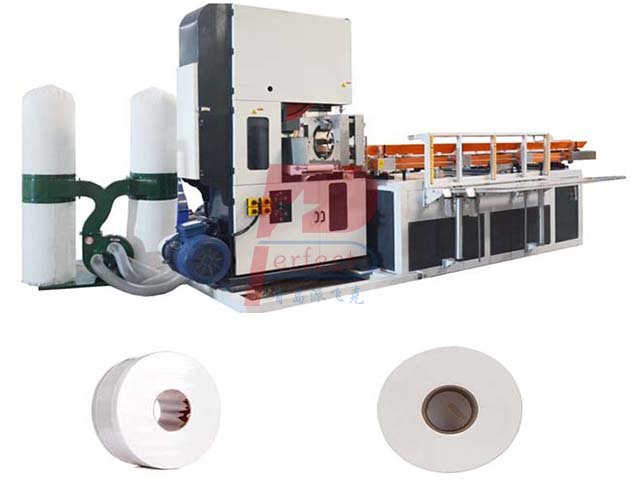

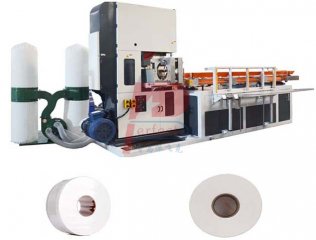

Machine Model

PFK-ZPLS3000

Raw Material Size

Diameter:150-300mm

Length:≤3000mm

Finished Roll Size

Length:90-250mm

Production Speed

20-40 Cuts per Minute

Control System

Frequency control of motor speed

PLCand Man-Machine operation interface

Automatic material feeding,dropping and cutting,servo motor control

Automatic fault stop

Automatic blade sharpening system

Power: 380V,50hz,23KW

Air pressure: 0.6MPa

Machine Size

L: 5785mm x W: 2252mm xH: 2275mm

Machine Weight

5000KGS

Accessories

1.Tool box with basic tools   -1set

2.Blades-3pcs

3.Knife grinder-1pair
