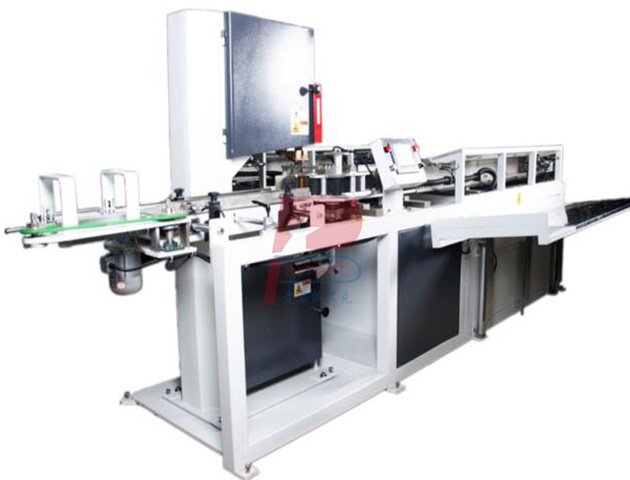

Machine Model | PFK-LS2200 | PFK-LS3000 |
Raw Material Size | Diameter:60-130mm | |
Length: ≤2200mm | Length: ≤3000mm | |
Finished Roll Size | Length:80-240mm | |
Designed Speed | 200 Cuts per Minute | |
Working Speed | 80-150 Cuts per Minute | |
Control System | Frequency control of motor speed | |
PLCand Man-Machine operation interface | ||
Automatic material feeding, dropping and cutting, servo motor control | ||
Automatic fault stop | ||
Automatic blade sharpening system | ||
Power: 380V,50hz,7.5KW | Power: 380V,50hz,7.5KW | |
Air pressure: 0.5MPa | ||
Machine Size | L:4353mm x W:1603mm x H:1750mm | L: 4885mm x W: 1603mm x H: 1750mm |
Machine Weight | 1500-2000KG | |
Accessories | 1.Tool box with basic tools -1set； 2.Blades-3pcs； 3.Knife grinder-1pair | |
