Technical details

Capacity: 500-800 pieces/hour; 1000-1500 pieces/hour

Consists of:

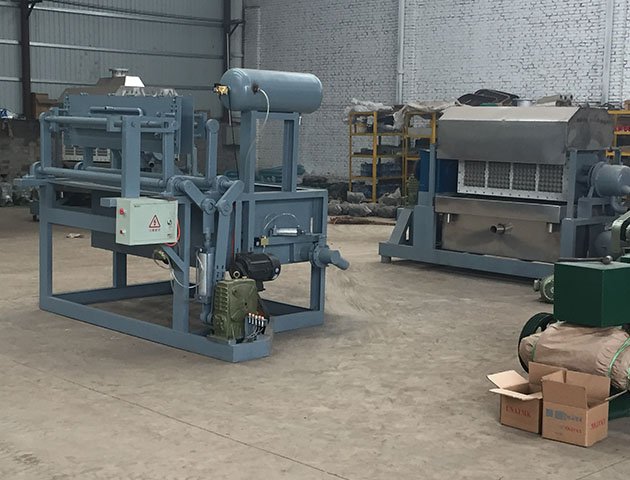

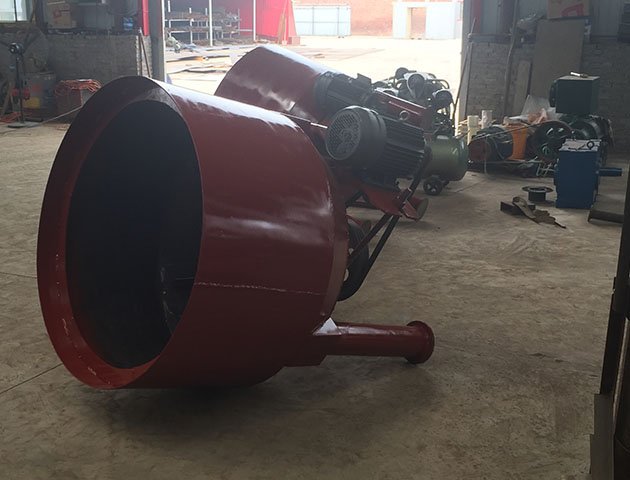

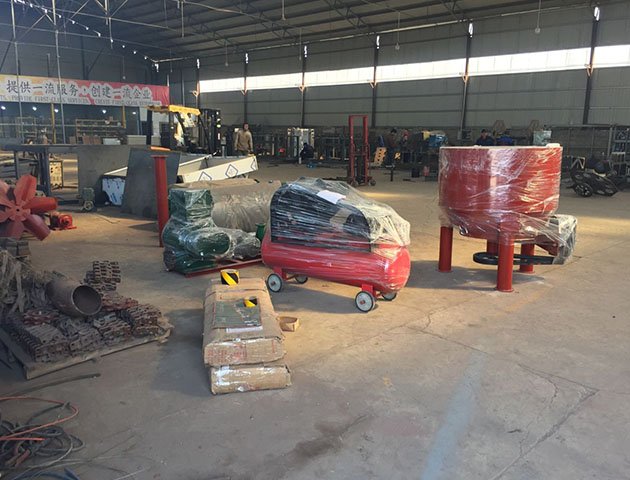

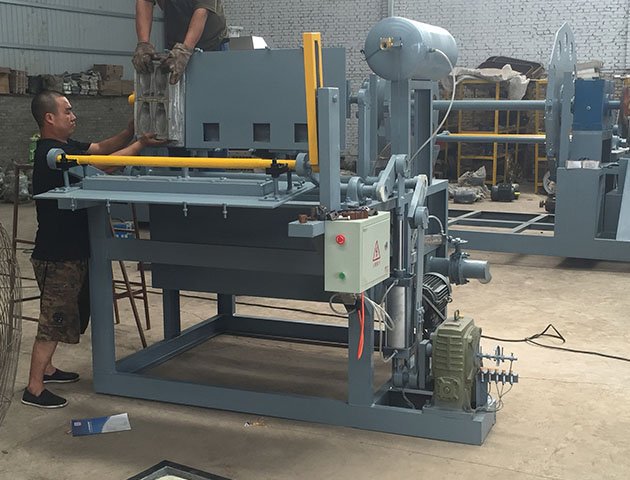

pulping system, small egg tray forming machine, air compressor, vacuum pump, 3 pairs forming molds ; Buyer need to dig and build water and pulp ponds as our drawing required sizes.



Use waste paper, old carton box to produce paper egg tray, you can also use it to produce other paper trays like paper shoe tree, egg box tray, wine tray by changing molds (shoe tree, egg box tray or wine tray need die cutting machine and molds to cut edges after drying)


Working theory:

Feed the cleaned raw waste paper and old cardboards into the hydrapulper to recycle into paper pulp, then the pulp will be supplied to the molding machine by the pulp pumps, and the small egg tray forming machine will do vacuum absorption to form the egg tray under the vacuum tank and air compressor’s assistance, then labor taking the finished egg tray onto drying frames and pallets for sunshine drying.

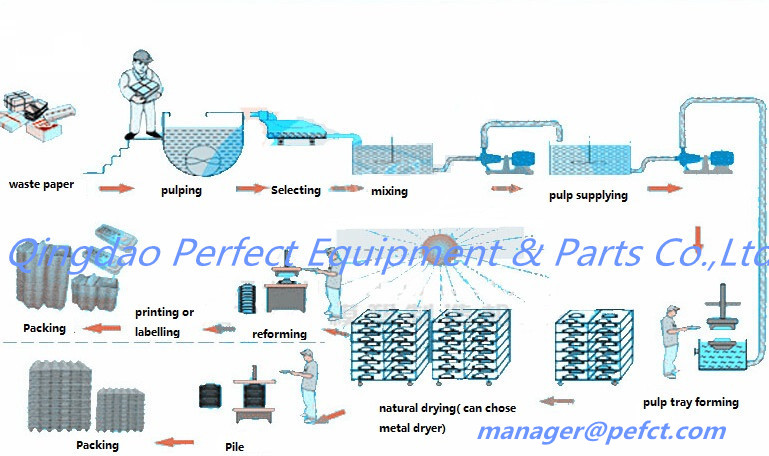

Working flow:

Working video of Philippine client small egg tray making machine with metal dryer

For more information about Qingdao Perfect Equipment small paper pulp egg holder flat tray making machine:

small egg holder flat tray making machine manufacturer
