Technical details

Capacity: 800-1000 pieces/hour


Consists of:

Integrated pulping system, small egg tray forming machine, air compressor, vacuum pump, 4 pairs forming molds



Use waste paper, old carton box to produce egg tray, you can also use it to produce other paper trays like shoe tree, egg box tray, wine tray by changing molds (shoe tree, egg box tray or wine tray need die cutting machine and molds to cut edges after drying)


Working theory:

Feed the cleaned raw waste paper and old cardboards into the hydrapulper to recycle into paper pulp, then the pulp will be supplied to the molding machine by the pulp pumps, and the small egg tray forming machine will do vacuum absorption to form the egg tray under the vacuum tank and air compressor’s assistance, then labor taking the finished egg tray onto drying frames and pallets for sunshine drying.

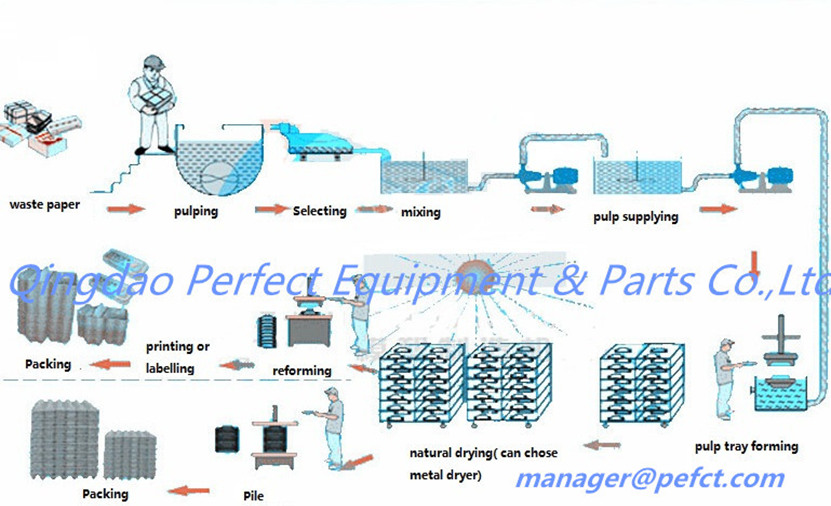

Working flow:

Semi-automatic egg tray making machine manufacturer -Qingdao Perfect Equipment:

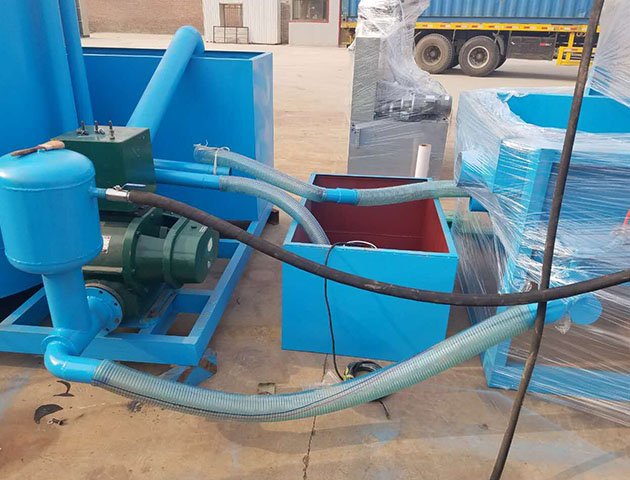

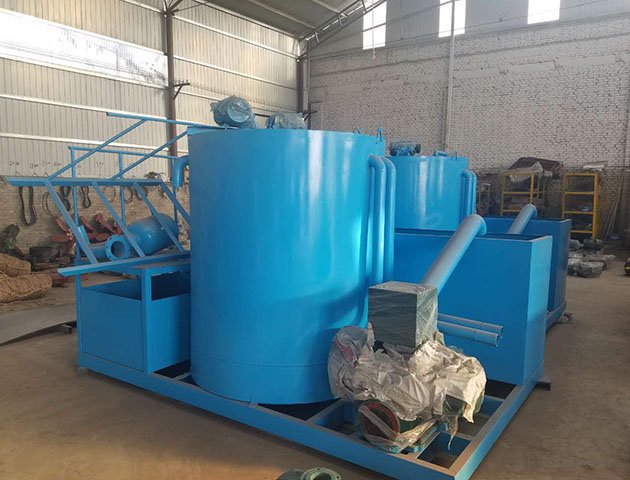

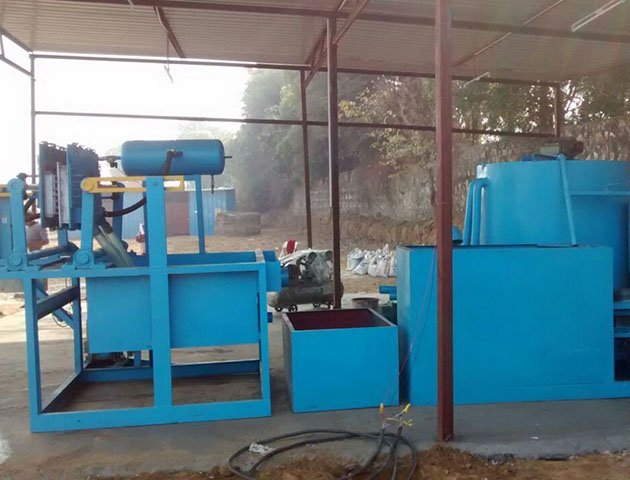

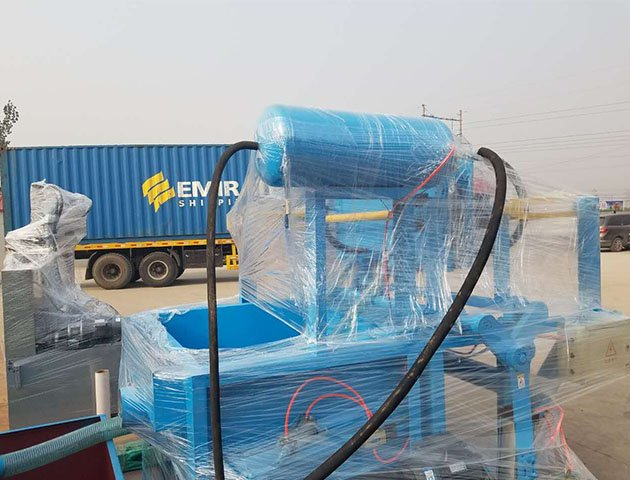

semi-automatic egg tray making machine
