5-4 Automatic egg box tray making machine

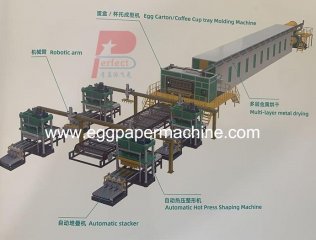

Consists of the automatic egg box tray production line:

1) Pulping system recycling waste paper old cardboard carton boxes

2) 5-4 Automatic egg box tray molding machine with 10 caves egg box trays forming molds and air compressor vacuum pumps

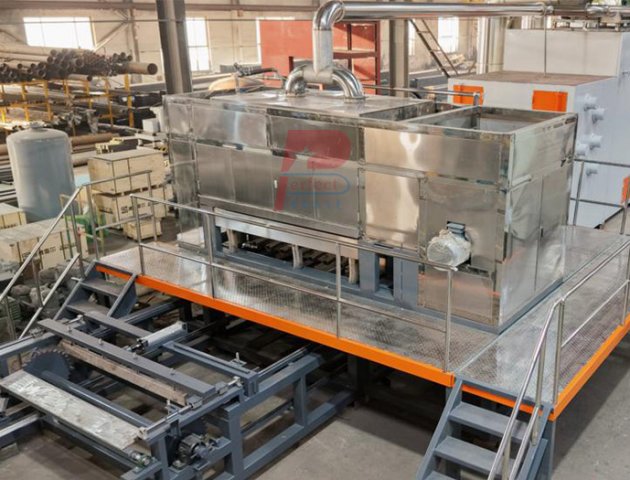

3) 6 layers metal oven dryer with Italy brand burner (heating source can be diesel,natural gas,thermal oil,steam,LPG, coal or wood chips)

4) Automatic egg box tray stacker

Designed capacity: 4500 pieces per hour per hour; Economic capacity: 3500-4000 pieces per hour (10 caves egg box tray, 65 GSM); The capacity varies as buyer workers operation skills and finished egg box trays GSM

Required factory workshop size for the automatic egg box tray production line: length≥60m, width≥15m; workshop for egg tray forming machine: length≥25m, width≥20m, height≥5.0m, the finished products storage warehouse must be more than 300m²

Pulp pools and water pools can be up ground or under ground, that depends on clients prefer

The water is recycled, but because it was waste water from beginning, it became dirty when it recycled several times, it needs to be changed. For water lacked area, it can install sewage disposal system for saving water cost.

The whole automatic egg box production line is CE quality, hydra-pulper and egg tray molding machine use Siemens brand driving motor, International famous brand electric parts

Consumption details per hour for the automatic egg box tray production line

Waste paper:280-320kgs

Water: 900-1000kgs (recycled)

Natural gas: 80-82 cube meters (reference)

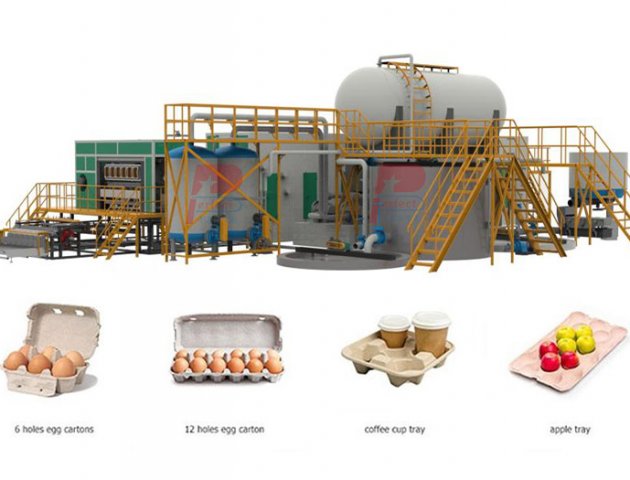

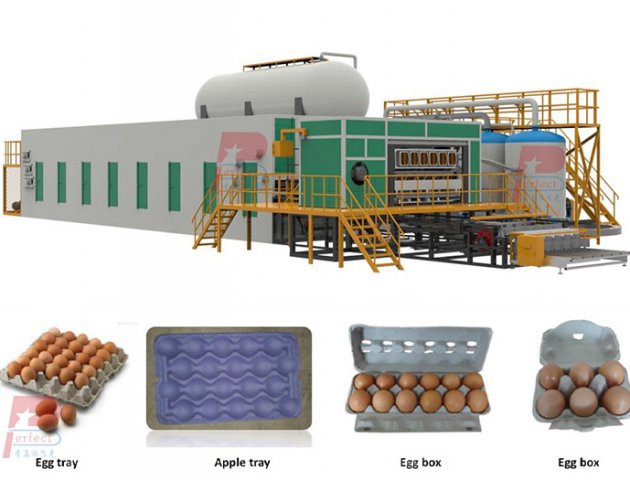

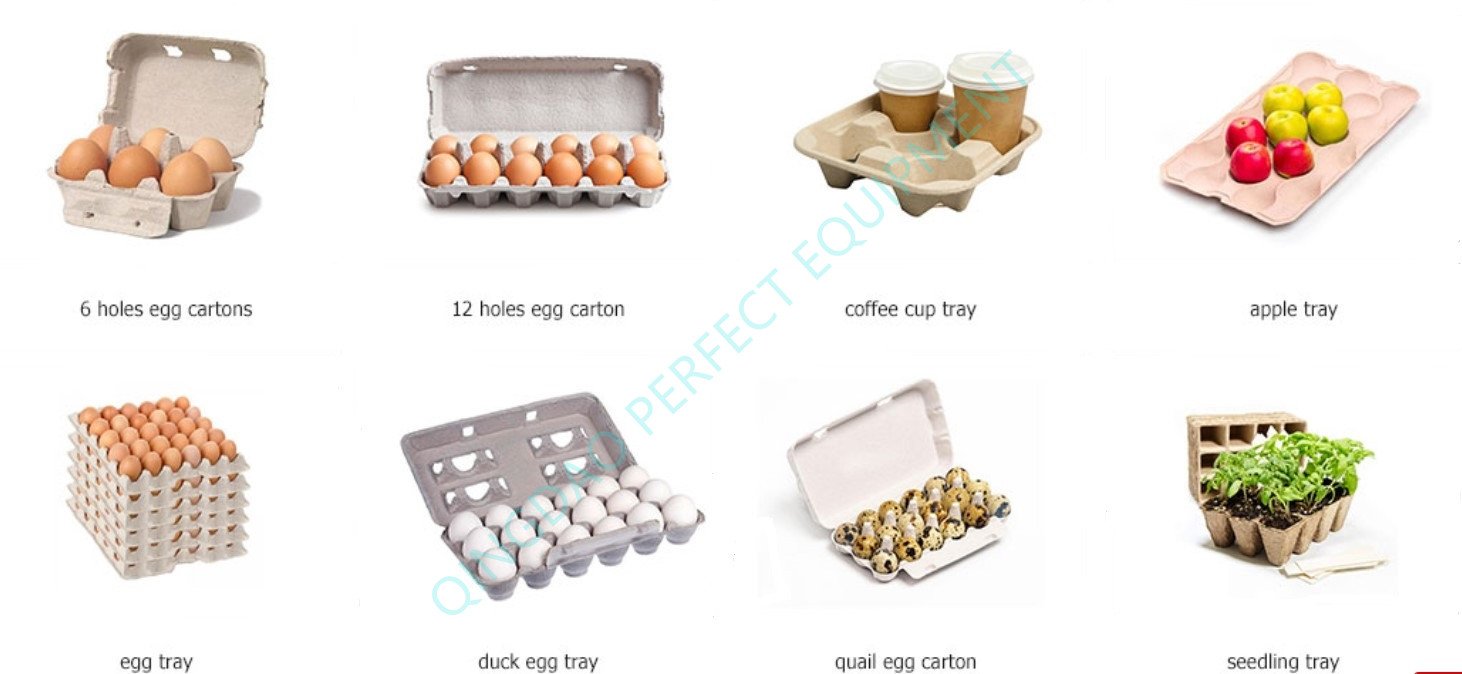

Output paper pulp packaging trays that you can produce by changing forming molds
