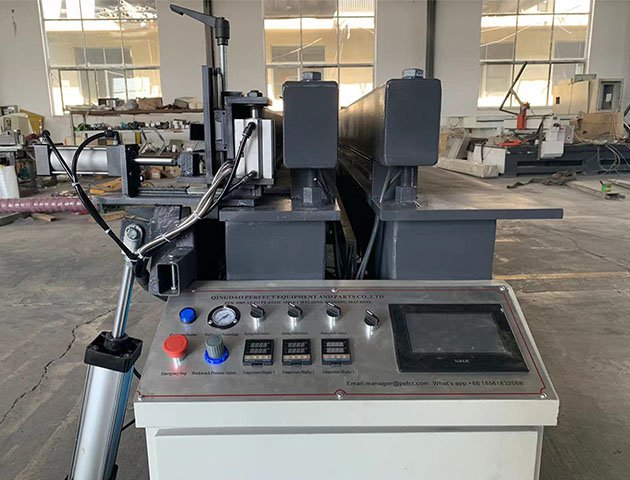

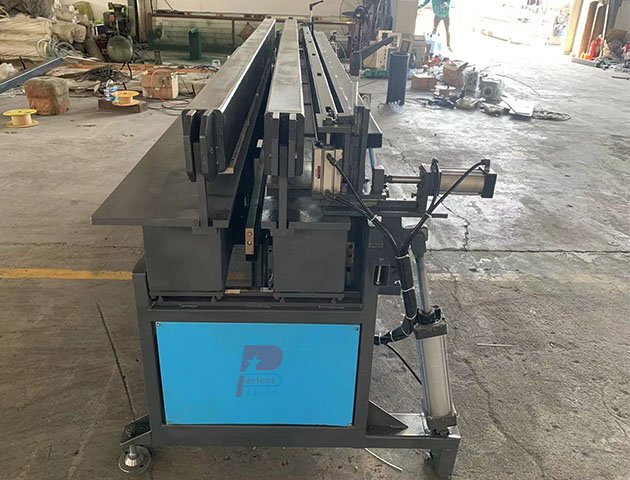

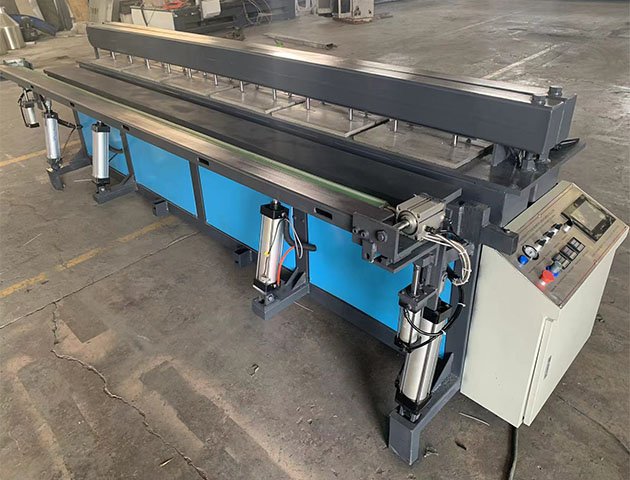

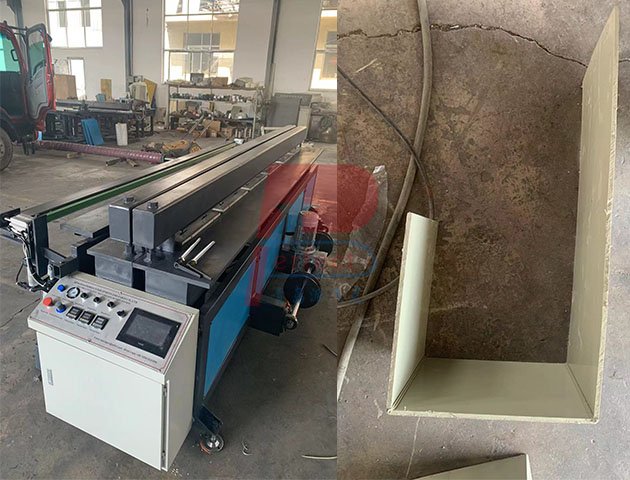

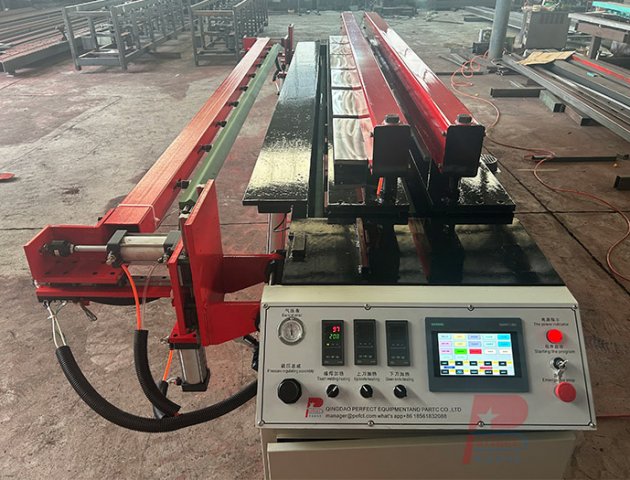

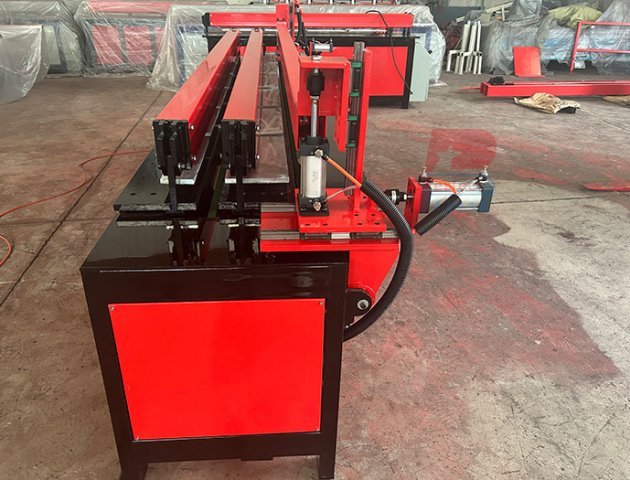

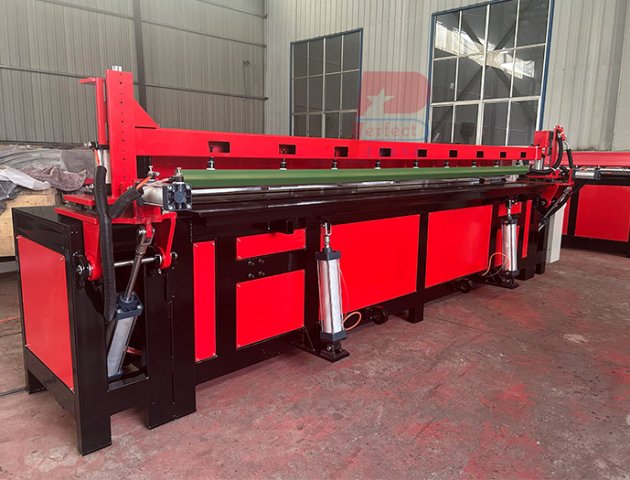

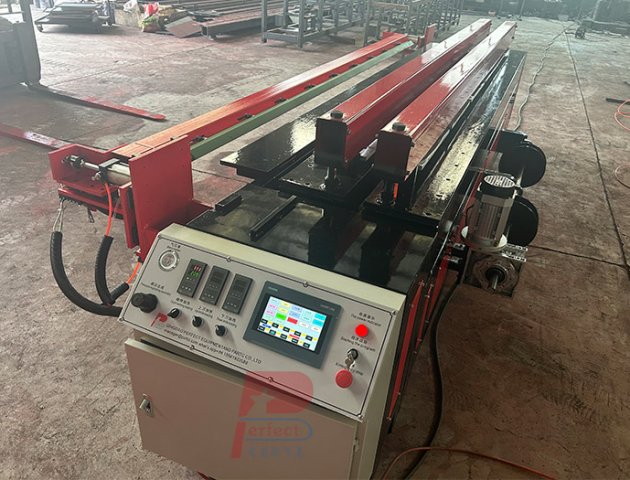

Siemens PLC touch screen control system, operation is simple, with the realization of automatic plastic sheet welding bending, increase the production efficiency and product quality. Top welding performance, has a number of patents; select the menu simple, easier operation; Welding bending all in one design, small covering area, to weld plastic sheet, plastic rolling circle, plastic bending, square plastic tube products with good appearance.
Welding length | 300-3000mm |
Welding thickness | 3-30mm |
Welding Tensile strength | ≥95﹪ |
Welding flatness | ±0.01mm |
Min welding circle diameter | 600mm |
Rolling motor power | 3.5KW |
Touch welding heating power | 8.0KW |
Heating the rated voltage | 380V( Customized) |
Working pressure | 0.4-1.0MPa (5-8KG) |
Total weight | About 1850KGS |
Machine dimension | About 3900*1370*1510 |
Processing material | PP/PVC/PA/PE/PVDF/ABS/HDPE |
