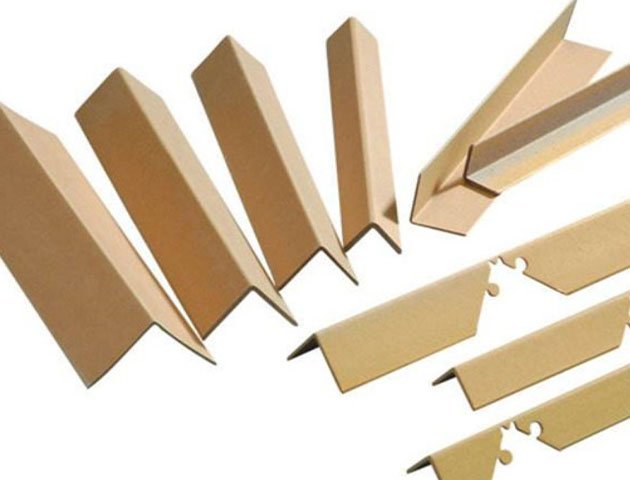

L shape paper edge board sizes: 25-100mm (bigger sizes can be customized)
Edge protector board thickness: 2.5-10mm
Working speed: 0-60 meters/min, economic speed: 55 meters/min
Cutting accuracy: 1000+-1mm
Max layers: 13
GSM of raw craft paper:
1) surface paper: 150-220 gsm craft paper;
2) inner paper: 300-700gsm bobbin paper

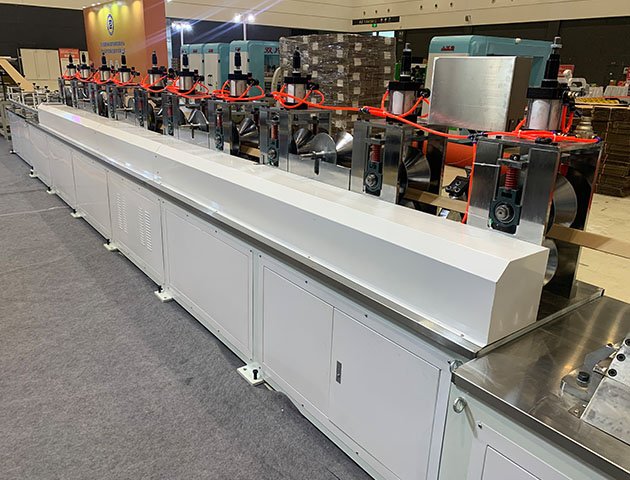

Octagonal device: 10 groups forming wheels
Heating device : 4 groups heating
Total power: 220V/380V/440V 50H-60Hz 3Phase 13.5kw
Total weight: about 5500kgs
Overall dimension: about 25000*1350*1700mm
Control system: PLC touch screen
Optional: die cutting unit; flat board forming mold
