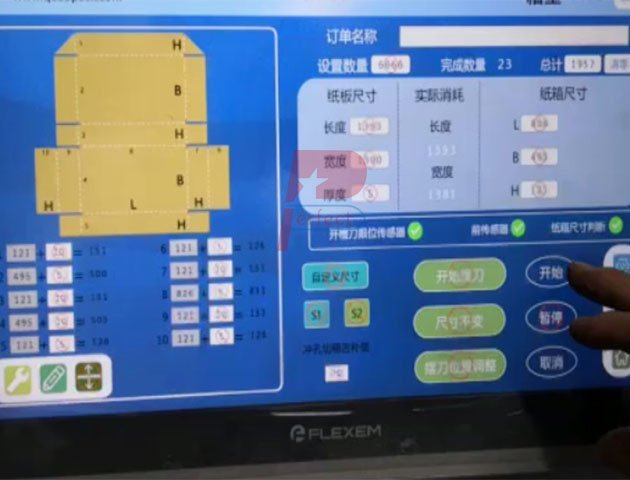

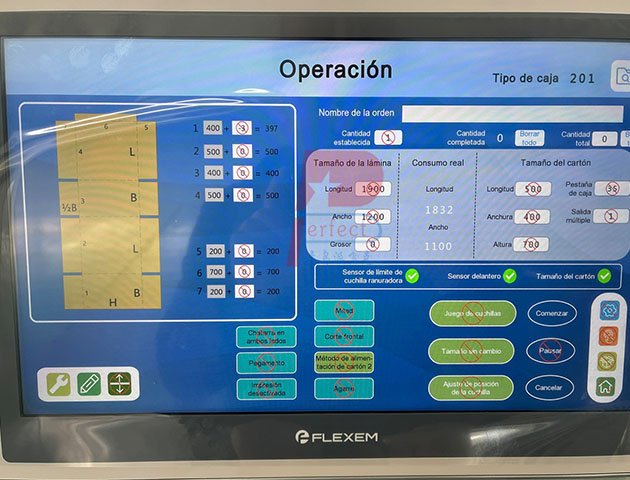

1.The automatic corrugated carton box making machine comes with more than 100 types carton boxes, you only need to select the required box type on the HMI touch screen and enter the size to process the carton;
2.No matter the box type or size is changed, it can be completed within 30 seconds.
3.The single machine of the equipment integrates automatic paper feeding, slotting and threading, slitting and pressing, cross-cutting and trimming, and various functions such as portable holes can be customized.
4. 2.8 meters max cardboard feed width, unlimited paper feed length, as small as mobile phone boxes, as large as freezer boxes, and oversized furniture boxes.
5. Max scoring length is 2500mm, max height for RSC carton is 2500mm
6. One operator, no need die cutting molds, fully digital control, quick change orders, widely application scope, multiple functions.

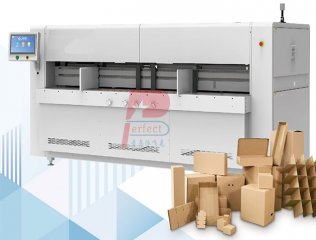

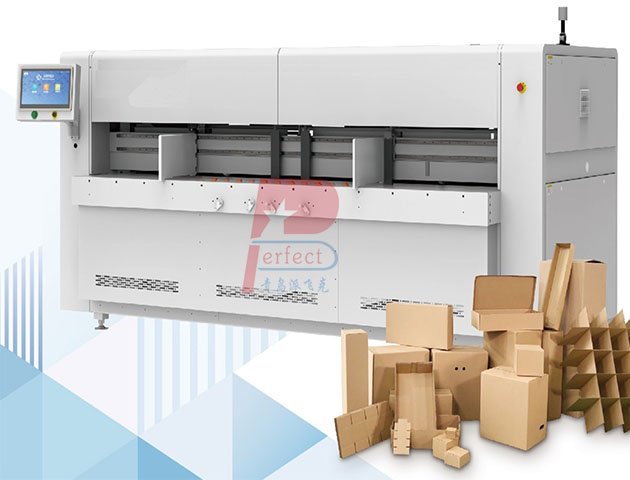

PFK 2800 CNC fully auto carton box making machine | |
Suitable for | Single or double wall corrugated cardboard |
Cardboard thickness | 2-12 mm |
Max weight of the cardboard | 1200GSM |
Max feeding cardboard sizes | 2800mm width* infinite length |
Min feeding cardboard sizes | 260*680mm (W*L) |
Minimum slitting sizes | 60*50mm |
Minimum box sizes | 50*50*110mm(L*W*H) |
Minimum creasing gap | 25mm |
Minimum slotting height | 110mm |
Maximum slotting height | 2500mm |
Slotting blade sizes | 2*500*7mm |
Slotting length | 20-1000mm |
Order changing time | 1-6 seconds |
Processing boxes sizes | More than 100 types |
Production capacity | 480-900 pieces/hour (vary as boxes shapes and sizes) |
Vertical slotting blade | 6 pieces |
Creasing wheel | 6 pieces |
Crossing cutting blade | 1 piece |
Vibrating knife | 2 pieces |
Inconsistent creasing | Yes |
Concave convex creasing | Yes |
Air source pressure and air consumption | 0.6-0.7Mpas 75L/Minute |
Weight | About 3500 kgs |
Working power | 380V 50Hz 3Phase 8.0KW |
Machine sizes | 3760(W) * 1700（L）* 2050mm(H) |
Cardboard feeding unit | Front leading edge automatic feeding |
