Technical details

Max tissue log width: 2850mm (customized)

Tissue log diameter: 100-150mm (customized)

Storage: 100 logs or 150 logs

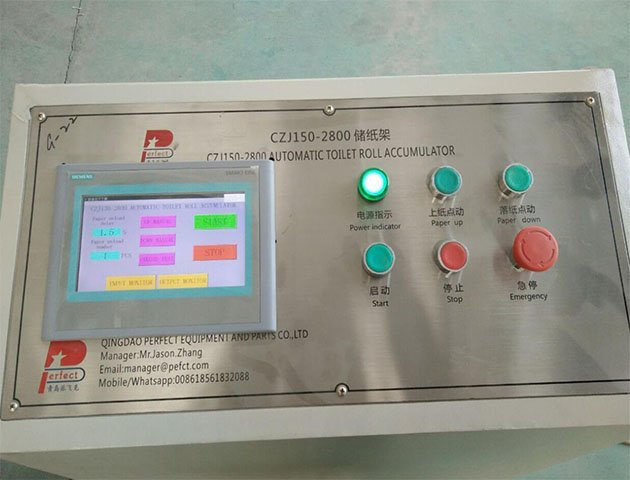

Control: PLC

Working speed: 20 logs/min, both loading and discharging side

Quantity of discharge: 1-2 logs/time

Charge height: from the ground 630mm; Min Discharge height: 1012mm from the ground

Logs loading and discharge: Photoelectric control

Air pressure needed: 0.5Mpa

Power: 2.2KW/380V/50Hz/3 Phase (440V and 480V for America market can be customized)

Size: 3680*3500*3300mm

AB speed reducing motor and AB frequency changer, the PCL brand will be chosen from AB, Mitsubishi, Siemens brands.



One set 150 pieces capacity accumulator can be connected with 2 sets tissue paper rewinding machine and one set double channel toilet rolls log saw.


The testing video of our Mexico customer bought auto toilet tissue paper rolls accumulator machine

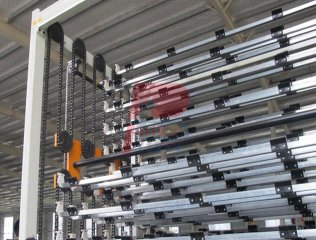

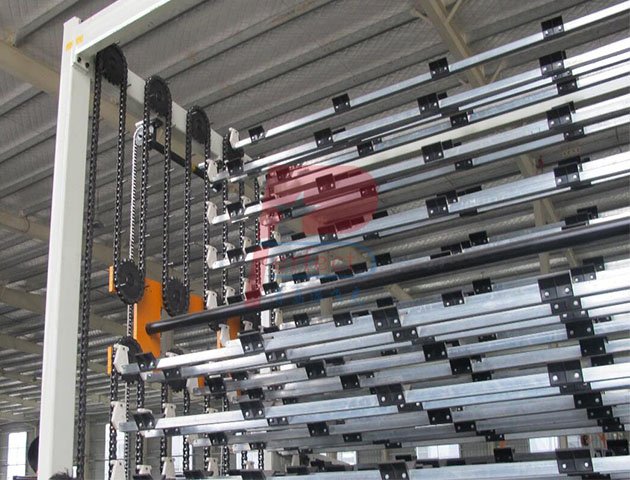

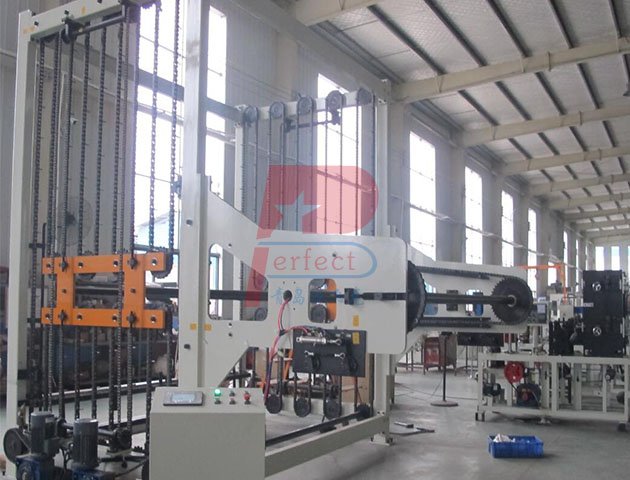

Toilet tissue paper rolls holder accumulator
