Technical details

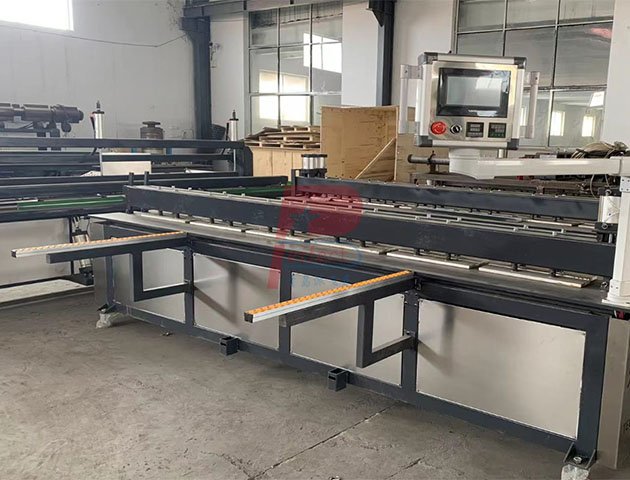

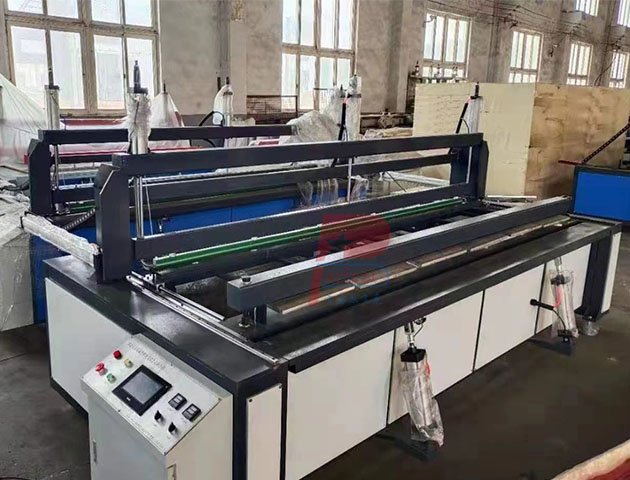

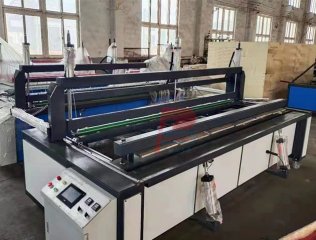

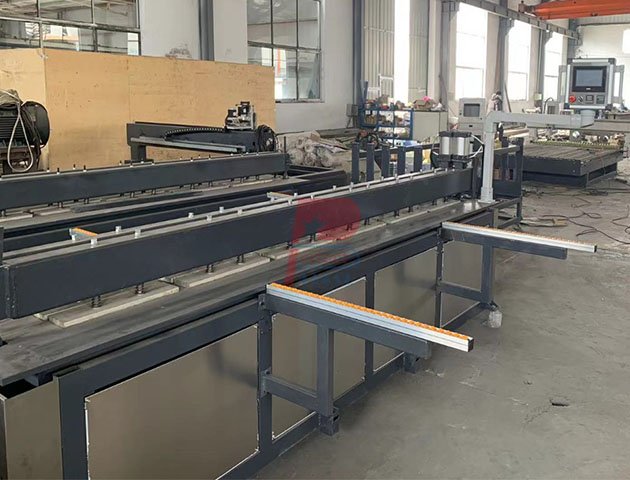

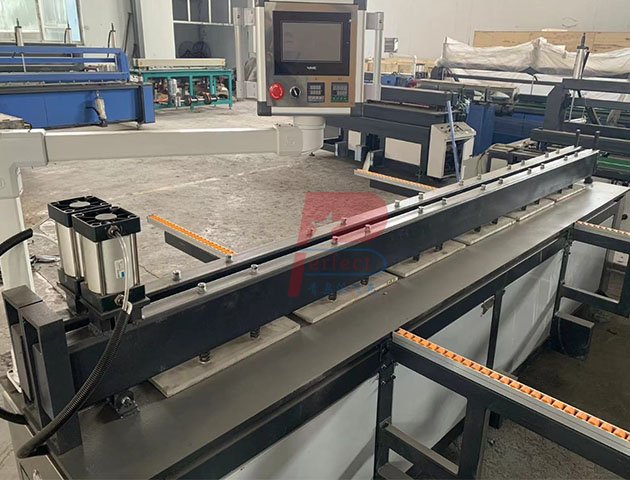

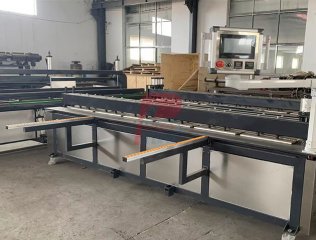

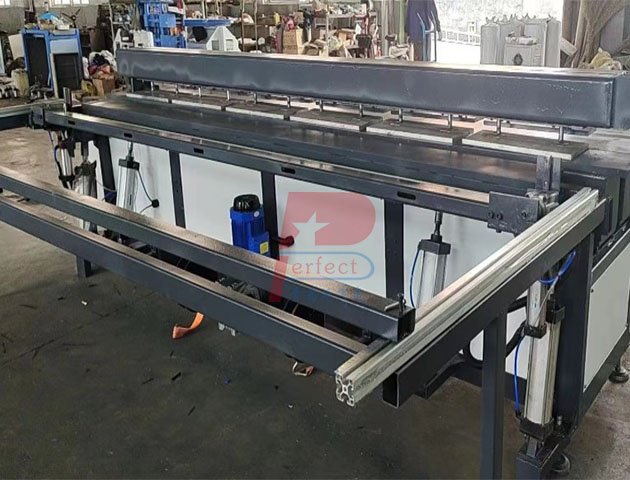

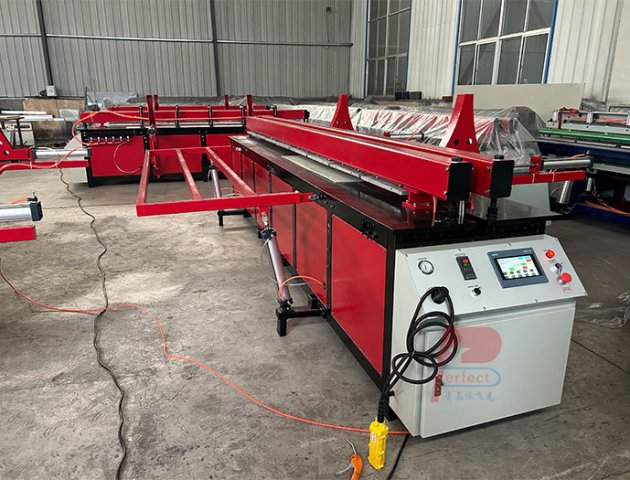

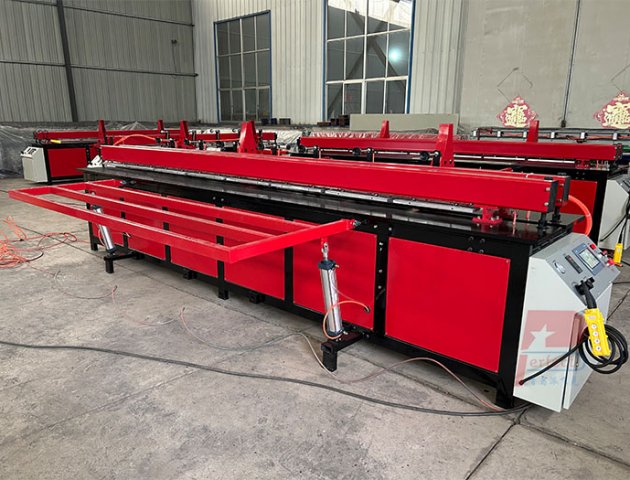

2022 New designed automatic plastic sheet welding machine, plastic sheet bending machine, plastic sheet welding bending all in one machine; Using PLC control, easy to use, with the realization of automatic plastic plates or plastic circle welding, increasing the production efficiency and product quality greatly; Top welding effect; Reduced the cylinders quantity a lot, more simple for buyer's repair and operate; SS314 stainless material machine frame covering plates, guarante the long service span of the machine.


Welding  length

40-6000mm(customized)

Welding thickness

5-50mm

Welding Tensile strength

≥95

Welding flatness

±0.01mm

Min welding circle diameter

400mm

Rolling motor power

3.2KW

Touch welding heating power

4.0KW

Heating the rated voltage

380V( Customized)

The total power

8.5KW

Working pressure

0.4-1.0MPa (5-8KG)

Total weight

About1400-2250KGS

Machine dimension

About 5500*2400*1250

Processing material

PP/PVC/PA/PE/PVDF/ABS

PLC

Xin Jie or Siemens brand

Function

Circle welding 90 degree welding

Pneumatic Cylinder

TPM, Zhe Jiang China

Breaker

CHNT, China

Material of heating unit

From Tai Wan, China

Heating unit surface coating

DuPont 380 pure Teflon coating

Countertop motion slider

HIWIN, Tai Wan, China

Motor

LV aluminum motor

Heating stick

SS304 material

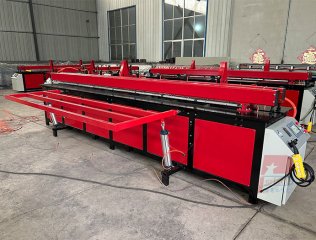

Automatic plastic sheet bending machine, automatic plastic circle plastic square welding bending all in one machine, CNC plastic sheet cutting machine are available from us
