Technical details

Embossing napkin tissue folding machine is the paper roll after slit cutting through embossing, automatically folded into a square or rectangular napkin machine, it uses electronic counting skip ensure the accuracy of the number of sheets , easy packing, using heat embossing roll thermostat device, even more clear embossing effect stereotypes can be configured  can fold 1/4,1/6 folding function and other specifications according to different needs .


Working video of our two colors printed napkin tissue folding machine:

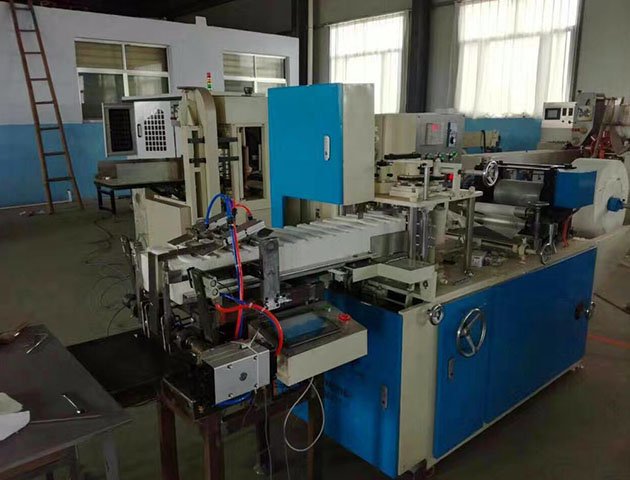

High speed tissue paper napkin folding embossing machine


Raw tissue paper roll diameterφ800-φ1100mm
Finished product size  180×180-260×260mmcan be customized
Production capacity700sheets/min
Main motor1.5kw speed motor
Bandsaw motor0.75kw
Weight1000kg
Overall size2800×1400×1700
EmbossingSteel to steel
CountElectronic counting
Color printing1-2 colors are optional
