Technical details

1) Feeding is continuous vacuum blower with suction system, efficient, fast, and low noise. Feed speed can be adjusted by setting program.

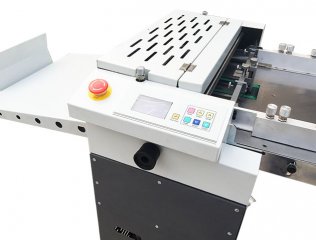

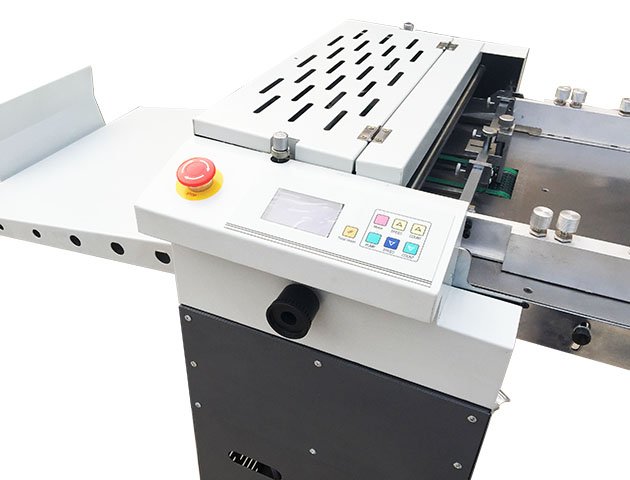

2) Front control panel can be easily set indentation location, number of indentation. And set the speed of the machine, both counting, fault display and other features.

3) Adjustable feeder table, external adjustment device, rotating the knob to adjust the centering and convenient tilt position paper feed.

4) Indentation pressure adjustable blade ends.

5) Modular yin and yang indentation groove design, optimization indentation effect, to avoid fracture and paper produce burrs.

6) Can be synchronized to complete lateral and vertical indentation playing rope work, tool operating speed and pressure adjustable.

7) Vertical table, easy to operate. Self-locking silent castors, which will help the move and fix.

8) Ultra-high-speed operation, feeding the 130 meters per minute



Model: PFK-460

Max feeding paper size: 460*600mm

Min feeding paper size: 90*120mm

Suitable paper weight: 40-350 gsm

Perforating hole distance: 0.5mm

Min crossed space: 20mm

Working speed: 130 meter/min

Working power: 220V/50Hz/ 1050W

Dimension: 1400*600*1100mm

Weight: 140KG
