Technical details

Model

PFK-1450L/PFK-1600L

Max lamination   sizes

1450*1300mm

Min lamination   sizes

350mm*350mm

Working speed

0-100/min

Power

380V 50Hz   3Phase 12kw

Sizes:(L*W*H

About 12.0m*2.40m*2.655m

Weight

About 7200KGS

Feeding   cardboard

Bottom   cardboardmin 350g/, max 800g/㎡,Max thickness10mm

Face papermin 180g/㎡,max 800g/.



Configurations





Name

Origin

Name

Brand

 Remark

Face paper feeder

Beijing brand

Button

China Chint


Bearing

JapanNSK)

Vacuum pump

Tai wan brand

Suction   floating bottom paper, running balance is accurate. Photoelectric control to   avoid single walking. This machine adopts the pre-pushing position: the paper   jam and the paper jam are attached: the error range is ±1.0mm, and the paper   and corrugated paper fit error range is ±1.5mm.

PLC

Panasonic

Level relay

Tai wan CKC

Frequency   convertor

Dalta

Air pump

China brand

Touch screen

Made in Shenzhen

Servo motor

INVT

Belt

America Gates

Transformer

China brand

Pressing belt

Italy brand



Chain

Japan brand



Main motor

Mengniu, China   famous brand



Reducer motor

China brand



Vacuum belt

Japan brand




Working video of our automatic carton box cardboard laminating machine:

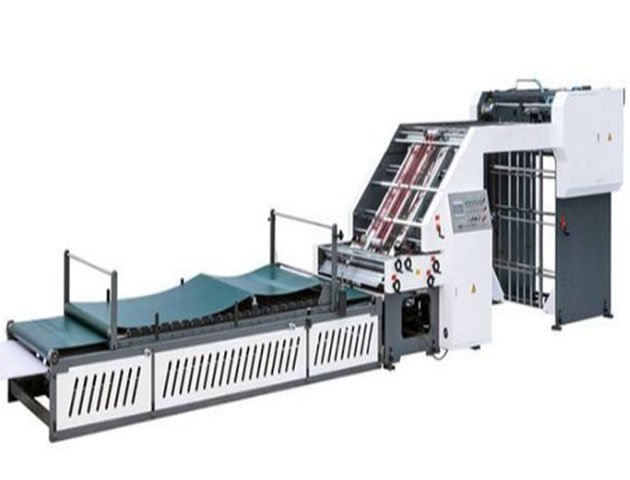

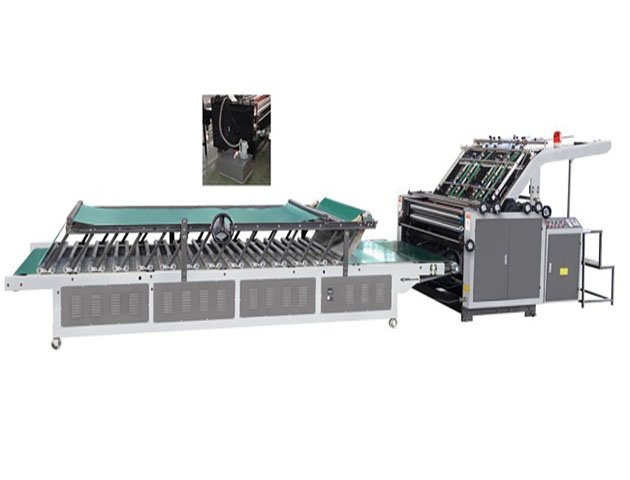

automatic carton box making cardboard laminator machine



Features

1. This machine adopts unique pressure spring type front gauge design to effectively reduce the mechanical failure rate, and cooperate with intelligent control to ensure accurate positioning.

2. This machine adopts frequency conversion speed regulation. PLC centralized control, analog-to-digital conversion, and accurate operation control.

3. The bottom paper adopts double servo control to realize the timeliness and accuracy of the bottom paper to the front gauge, and to ensure the accuracy of the machine under the condition of the machine adjustment.

4. The rubber roller adopts medium and high design and cooperates with knurled rubber roller, which greatly improves the uniformity of rubber coating, improves the bonding strength and reduces the production cost of customers.

5. The steel roller is balanced and tested, and the tight assembly process effectively improves the stability of the machine. In addition, the main drive adopts the timing belt drive, and the bottom paper directly sucks the paper to effectively improve the running precision and speed of the machine.

6. Using the page control system, automatic cycle glue, greatly reducing the labor intensity.

7. This machine adopts all the ISO9001 standard inspection of materials, and the quality is high and the durability is strong. Parts in key parts such as bearings are imported.

8. Independently develop strong Feida paper with pre-coded paper device to reduce downtime and improve work efficiency.

9. This machine is suitable for 150-450GSM paper and A B C D E F wave and three-layer and five-layer cardboard (maximum thickness less than 8 mm).
