Technical details

Simple and reliable operating system; The overall design of novel and smooth; Quickly carton box sizes change; Automatic counting, packing set; The minimum width plus height carton paste around 240mm



Max carton box size (L+W)*2: 2600mm

Min carton box size(L+W)*2: 600mm

Max carton box size(W+H)*2: 1515mm

Min carton box size( W+H)*2: 260mm

Cardboard feeding height: 900mm

Working speed: 50-70 pieces/min

Overall size: 5300*1800*1700mm

Weight: About 1150kg


The working video of semi-auto corrugated box gluing forming machine:

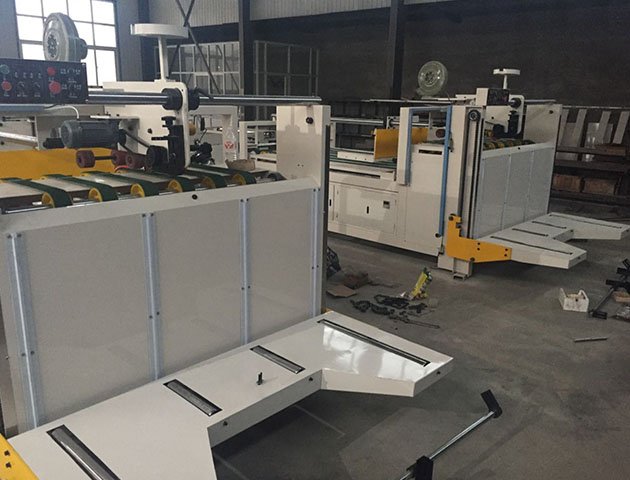

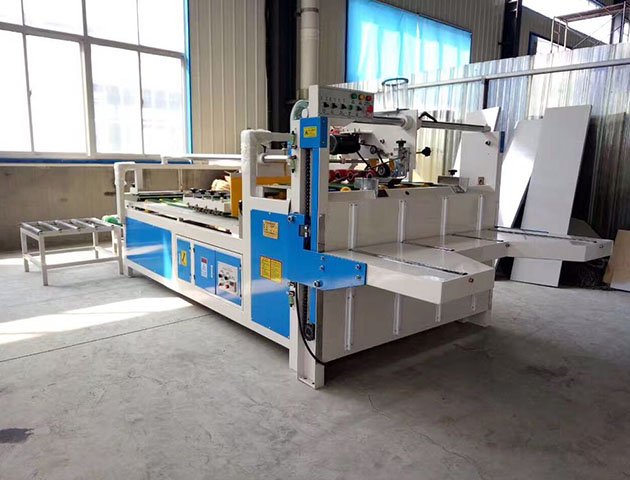

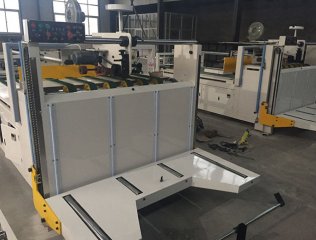

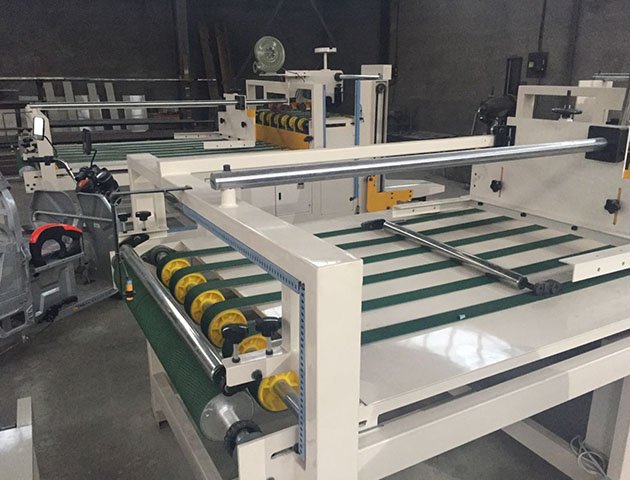

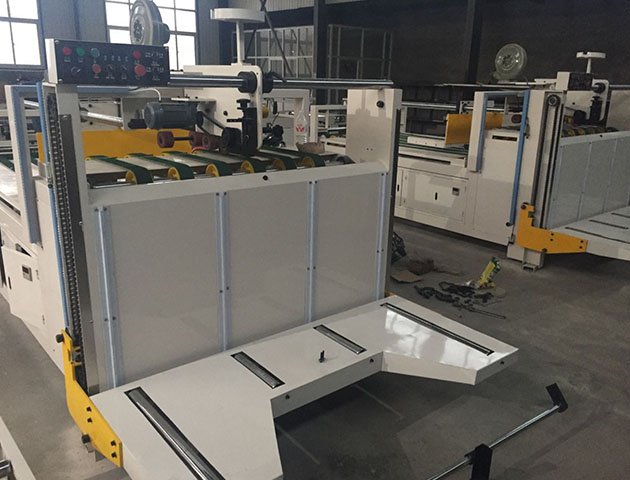

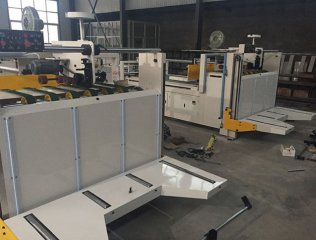

corrugated carton box gluing forming machine
