Technical details

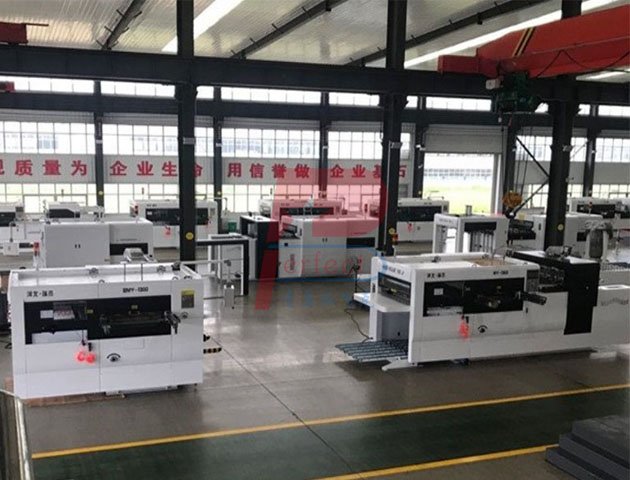

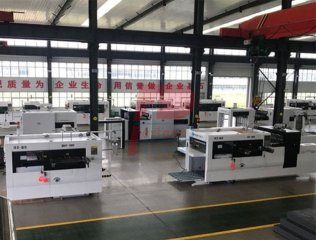

MY series automatic cardboard paperboard die cutting creasing machine(Stripping is optional)

Feeding type: auto feeder or front lead edge automatic feeding

Cardboard feeding size (max): 1060*750;1080*780mm;1100*780mm;1200*850mm; 1300*940mm;

Cardboard feeding size (min): 400*350mm

Die cutting size (max): 1050*730mm;1070*760mm;1080*760mm;1185*830mm;1300*920mm;

Grip size (min): 5mm

Die cutting pressure (large) 350N/cm2

Processable paper: white paperboard, 200-2000GSM /corrugated cardboard (max 5mm thickness)

Working Speed (high): 7000 sheets/hour;5000 sheets/hour

Max feeding pile height:1100mm

Max collecting pile height:1100mm

Working power: 380V 50HZ 3Phases



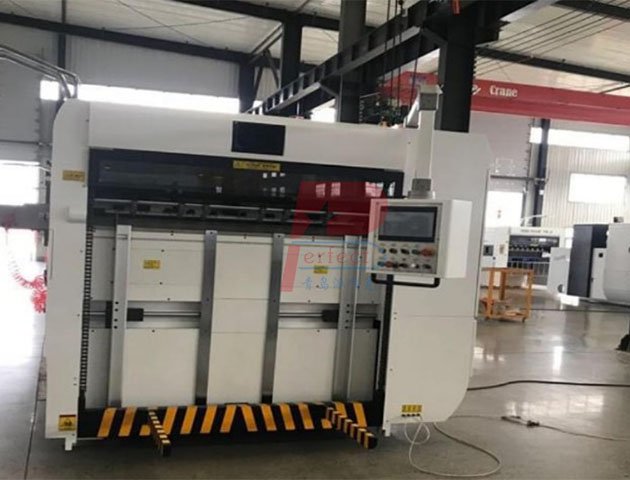

Feeding and Collecting Part

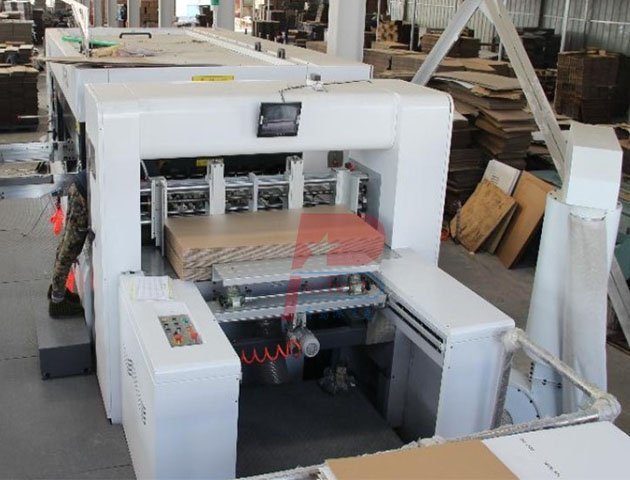

1. The extra feeder can do paper and corrugated board, Install the vacuum pump of BECKER.

2. At the middle of head install the monitor, worker can easily see the back.

3. Pre-paper pile design and special pneumatic bench can save much time.

4. The non-stop sampling system can check the board accurate without stop the machine.

5. Additional brush wheels and pressing wheels for thin paper and corrugated board running.

6. Advance push and pull lay of registration can assure the die cutting precision.

7. Rikko light front lay detection system prevent the slanting paper move in main body.



Main Machine body frame

1. Adopt automatic centralized lubricating system and setting main chain lubricating system by HMI.

2. Patented design shock absorption system can prolong the life of main body and increase the pressure.

3. The intermittent gearbox made in Taiwan can assure the accurate registration and decrease the gripper attack


Die cutting part and Conveying system

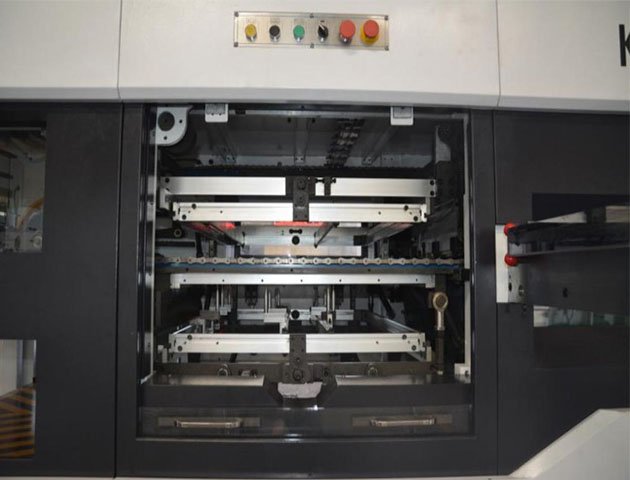

1. Die cutting chase fixed accurately by pneumatic lock system.

2. Die cutting plate is putted in and out by air floating device.

3. Electric clutch system of main chain can assure the chain steady when it is stopped at high speed.

4. Main chain and assist chain is lubricated periodically controlled by PLC.

5. Protection window of die cutting can hold the main body clean.

6. Light weight and durable aluminum alloy gripper bars with chain of Renold UK or Germany IWIS ensure accurate.


Electric system

1. Electrical with European and Japanese famous brand imported parts in order to improve the operation quality control.

2. Adopt Mitsubishi PLC programmable control system, simple circuit control procedures, easy to operate and repair.
